Configuring 802.1X

161

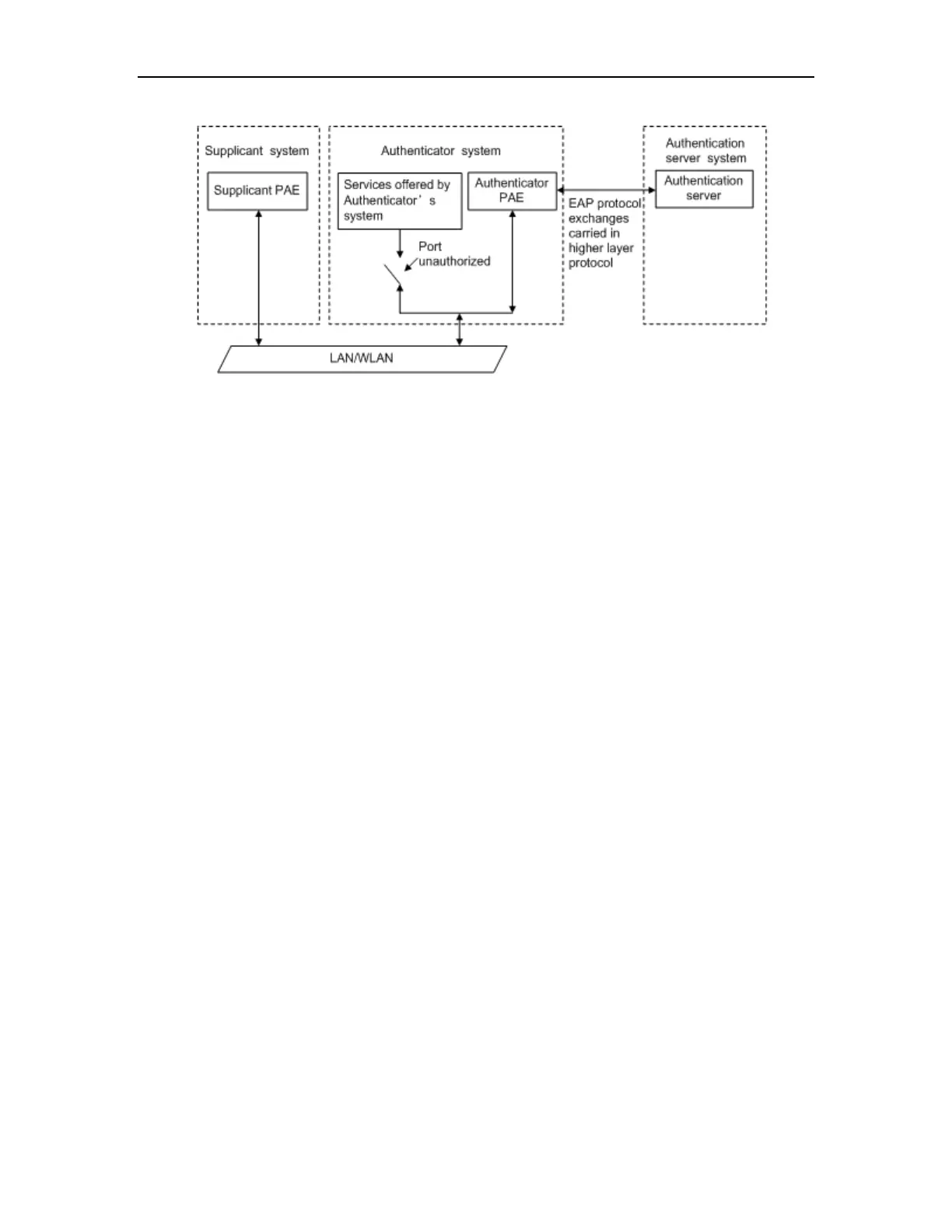

Figure 22-1 Architecture of 802.1x

The above systems involve three basic concepts: PAE, controlled port, control direction.

1) PAE

Port access entity (PAE) refers to the entity that performs the 802.1x algorithm and

protocol operations.

 The authenticator PAE uses the authentication server to authenticate a supplicant

trying to access the LAN and controls the status of the controlled port according to the

authentication result, putting the controlled port in the authorized or unauthorized

state. In authorized state, the port allows user data to pass, enabling the supplicant(s)

to access the network resources; while in unauthorized state, the port denies all data

of the supplicant(s).

 The supplicant PAE responds to the authentication request of the authenticator PAE

and provides authentication information. The supplicant PAE can also send

authentication requests and logoff requests to the authenticator.

2) Controlled port and uncontrolled port

 An authenticator provides ports for supplicants to access the LAN. Each of the ports

can be regarded as two logical ports: a controlled port and an uncontrolled port.

 The uncontrolled port is always open in both the inbound and outbound directions to

allow EAPOL protocol frames to pass, guaranteeing that the supplicant can always

send and receive authentication frames.

 The controlled port is open to allow normal traffic to pass only when it is in the

authorized state.

 The controlled port and uncontrolled port are two parts of the same port. Any frames

arriving at the port are visible to both of them.

3) Control direction

In the unauthorized state, the controlled port can be set to deny traffic to and from the

FoxGate S6424-S2C2 series User Manual
