FoxGate S6424-S2C2 series User Manual

QinQ Configuration
273
Switch(config-if-ethernet-0/0/1)#interface ethernet 0/1/1
Switch(config-if-ethernet-0/1/1)#switchport mode trunk
Switch(config-if-ethernet-0/1/1)#exit
Configuration on Provider B
Switch#configure terminal
Switch(config)#qinq
Switch(config)#qinq outer-tpid 9100
Switch(config)#vlan 100
Switch(config-if-vlan)#switchport ethernet 0/0/1 ethernet 0/1/1
Switch(config-if-vlan)#interface ethernet 0/0/1
Switch(config-if-ethernet-0/0/1)#switchport default vlan 100
Switch(config-if-ethernet-0/0/1)#qinq mode customer
Switch(config-if-ethernet-0/0/1)#interface ethernet 0/1/1
Switch(config-if-ethernet-0/1/1)#switchport mode trunk
Switch(config-if-ethernet-0/1/1)#exit
!Selective QinQ Configuration
Network requirements,As shown in Figure 37-4:
 Provider A and Provider B are access switches in the service provider network that
connect the customer network.
 The customer network is divided into VLAN 10 and VLAN 20.
 In between Provider A and Provider B are network devices with TPID 0x9100

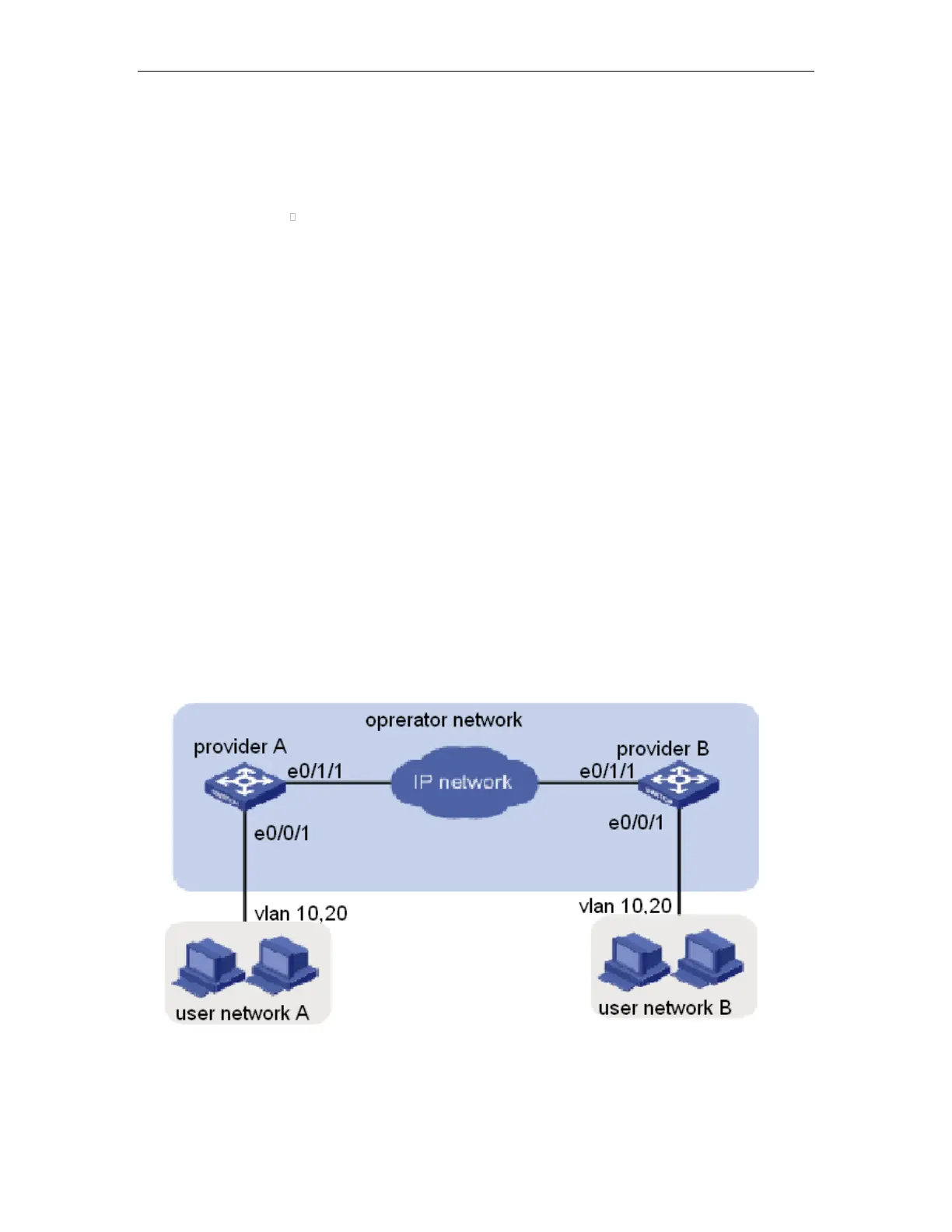

Figure 37-4 selective QinQ application
Configure selective QinQ so that frames from the customer network can pass through the
service provider network tagged with SVLAN 100.
