40.2.11 MLD Snooping Configuration Examples

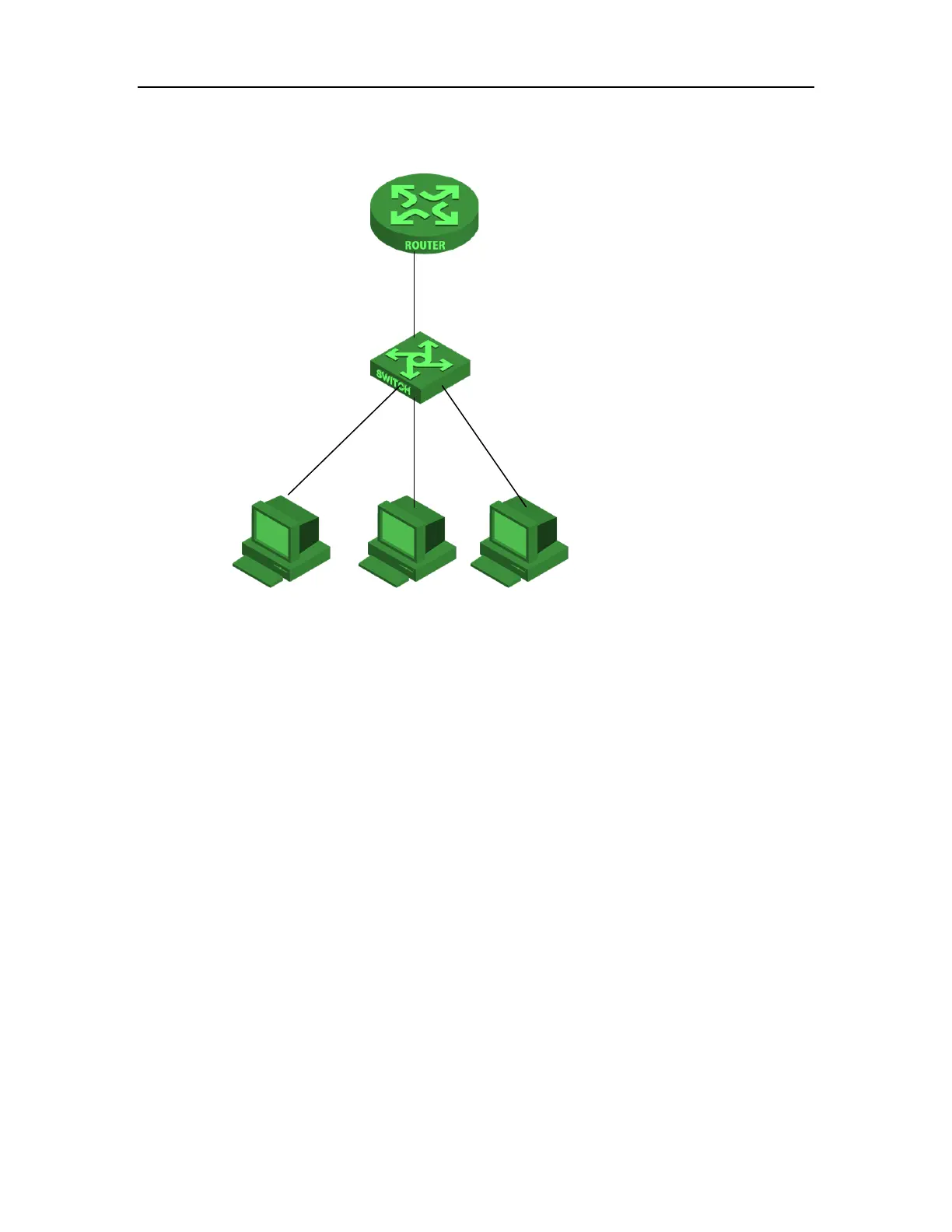

Figure 40-1
1. Network requirements
As shown in the figure 1-1, Host-A, Host-B, Host-C hosts separately belong to VLAN2,
VLAN3, VLAN4 。 Three hosts separately receive the data of the multicast address
FF02::01::0101-FF02::01::0103 per configuring.
2. Configuration steps
Configuring S-switch-A
# Configure VLAN2 to 4, and add the ports separately into VlAN2, 3, 4 of Ethernet0/0/1,
Ethernet0/0/2 and Ethernet0/0/3.
S-switch-A(config)#vlan 2
S-switch-A(config-if-vlan)#switchport ethernet 0/0/1
S-switch-A(config-if-vlan)#exit
S-switch-A(config)#vlan 3
S-switch-A(config-if-vlan)#switchport ethernet 0/0/2
S-switch-A(config-if-vlan)#exit
S-switch-A(config)#vlan 4
IPV6 Multicast
Source Router
S-switch-A
Ethernet0/0/3
Ethernet0/0/1
Ethernet0/0/2
Host-A
Host-B
Host-C
Ethernet0/0/4
