VLAN Configuration
71

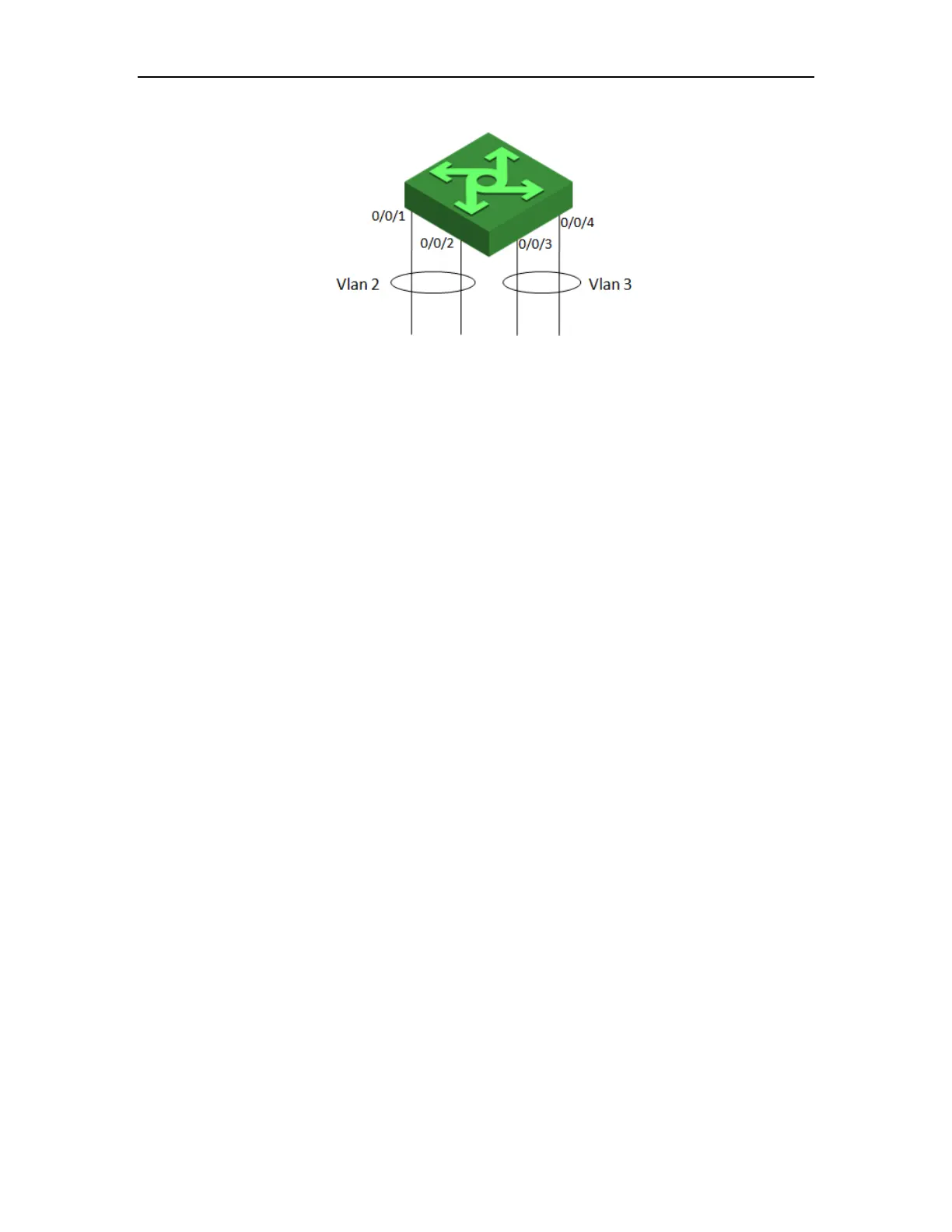

Figure 10-1 Networking diagram
Networking configuration
! Create VLAN 2 and enter it.
Switch(config)# vlan 2
! Add Ethernet0/01 and Ethernet0/0/2 to VLAN2.
Switch(config-if-vlan)#switchport ethernet 0/0/1 ethernet 0/0/2
! Create VLAN 3 and enter it.
Switch(config)# vlan 3
! Add Ethernet0/0/3 and Ethernet0/0/4 to VLAN3.
Switch(config-if-vlan)#switchport ethernet 0/0/3 ethernet 0/0/4
! Set the default vlan of Ethernet0/0/1and Ethernet0/0/2
Switch(config)#interface range ethernet 0/0/1 to ethernet 0/0/2
Switch(config-if-range)# switchport default vlan 2
! Set the default vlan of Ethernet0/0/3 and Ethernet0/0/4
Switch(config)#interface range ethernet 0/0/3 to ethernet 0/0/4
Switch(config-if-range)# switchport default vlan 3
! Enter VLAN view and delete Ethernet0/0/1 to Ethernet0/0/4 from VLAN1.
Switch(config)#vlan 1
Switch(config-if-vlan)#no switchport ethernet 0/0/1 to ethernet 0/0/4
