HP-GL/2 Emulation
821
Appendix
16
Defines a size same as the paper size as the hard clip area. However, the area that allows
actual printing is within the printable area.
The hard clip area can be set either with HP-GL emulation mode settings or by the specified
hard clip command "&I".

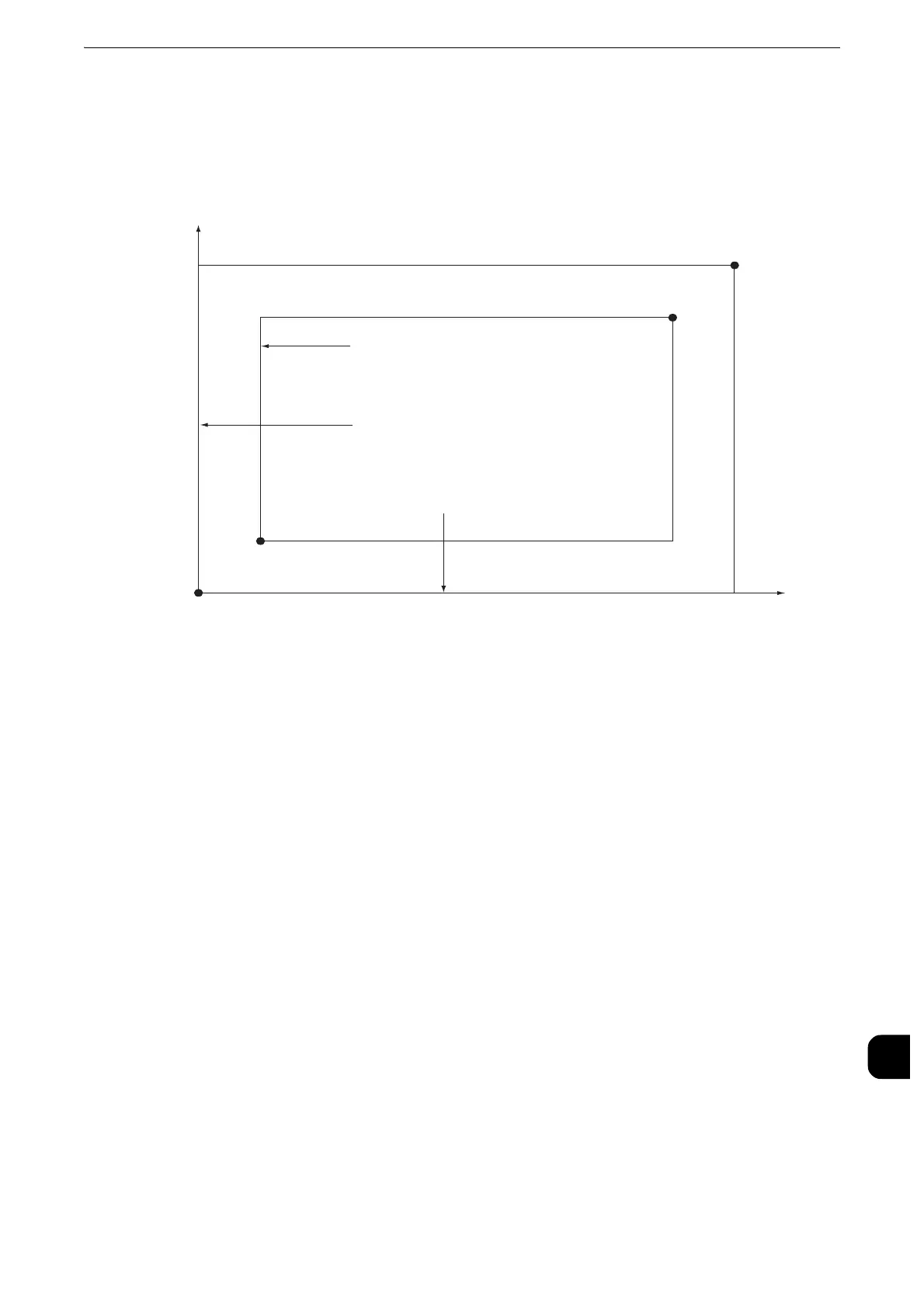

The following coordinate values present an example of when the origin is set at the lower
left (Auto Layout in HP-GL/2) of A3 sheet.
Printable Area
The printable area in the HP-GL mode is as follows:
Paper Hard Clip Area
Standard Hard Clip Area
Paper Size
(16442, 11520)
(16798, 11876)
(0, 0) Standard origin
(0, 0) Paper origin
+Y
+X
