104 Upgrade and Maintenance Manual BX924 S4
Hard disk drives / Solid state drives
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20565-001.fm
Installing HDD/SSD 1 onto the "dummy heat sink" (SSD holder)

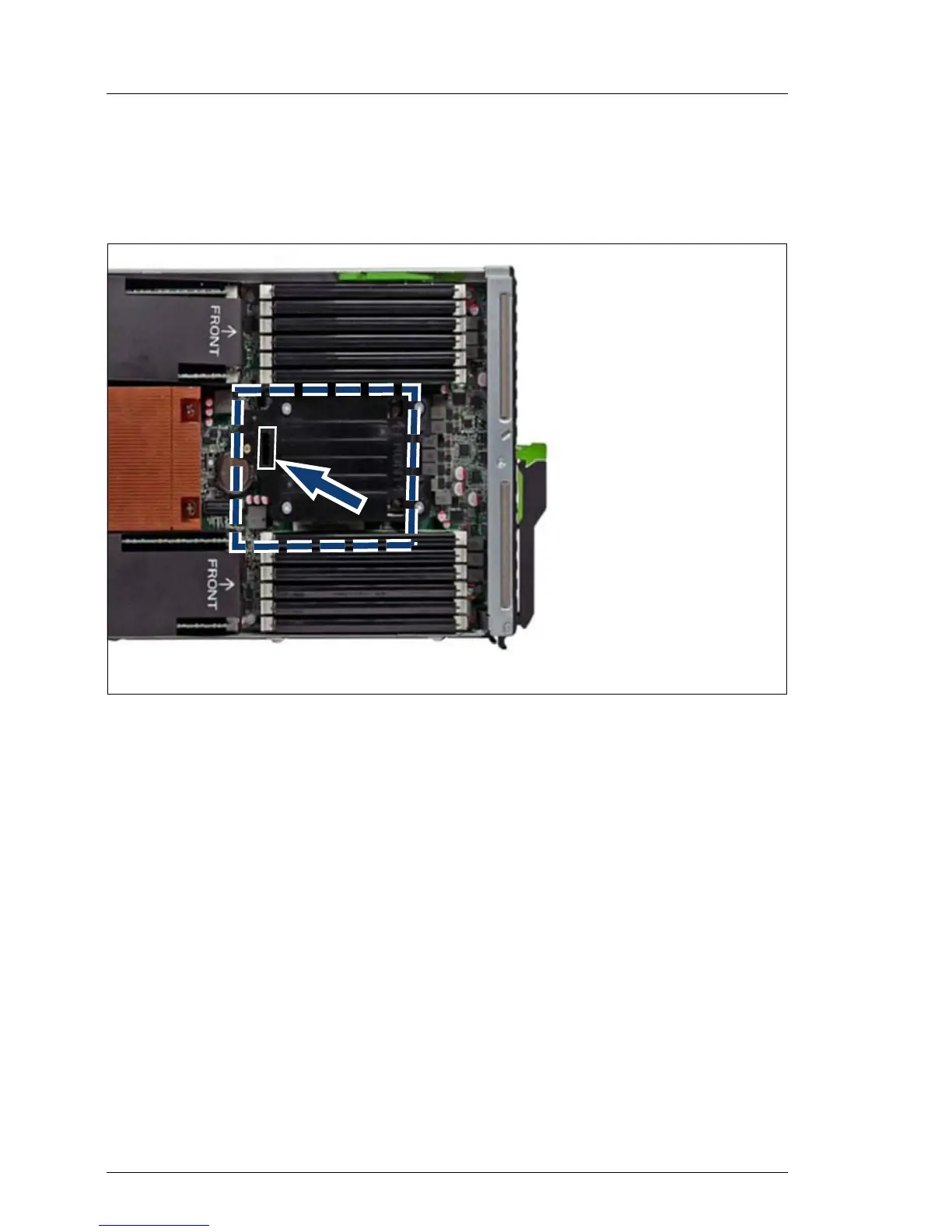

The following figure shows the connector for HDD/SSD 1 (see arrow) on the
mounting platform.
Figure 21: Connector for HDD/SSD 1 on the "dummy heat sink"
