BX924 S4 Upgrade and Maintenance Manual 101
Hard disk drives / Solid state drives
6.3.4 Installing SSD 0
I A HDD cannot be installed in SSD 0.
Ê Remove the mezzanine carrier as described in section "Removing
mezzanine cards" on page 140.
Ê Choose the desired mounting frame (PCH or SAS) for SSD 0.

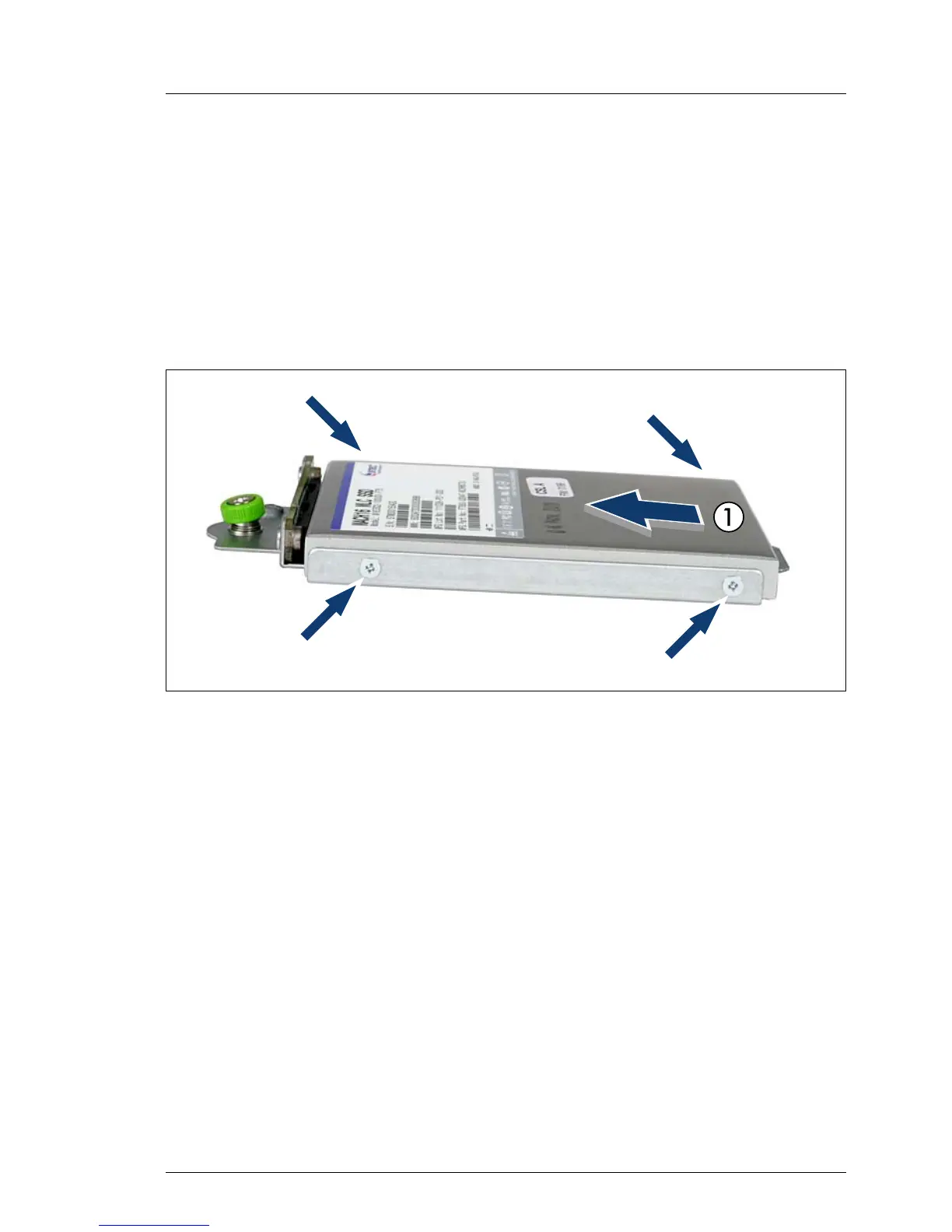

Figure 17: Securing the drive
Ê Shift the drive into the connector on the mounting frame (1).
Ê Secure the drive with 4 screws (see arrows). Torque: 0.6 Nm (not applicable
for the Japanese market)
