BX924 S4 Upgrade and Maintenance Manual 113
Hard disk drives / Solid state drives
Removing HDD/SSD 1 from the mounting frame

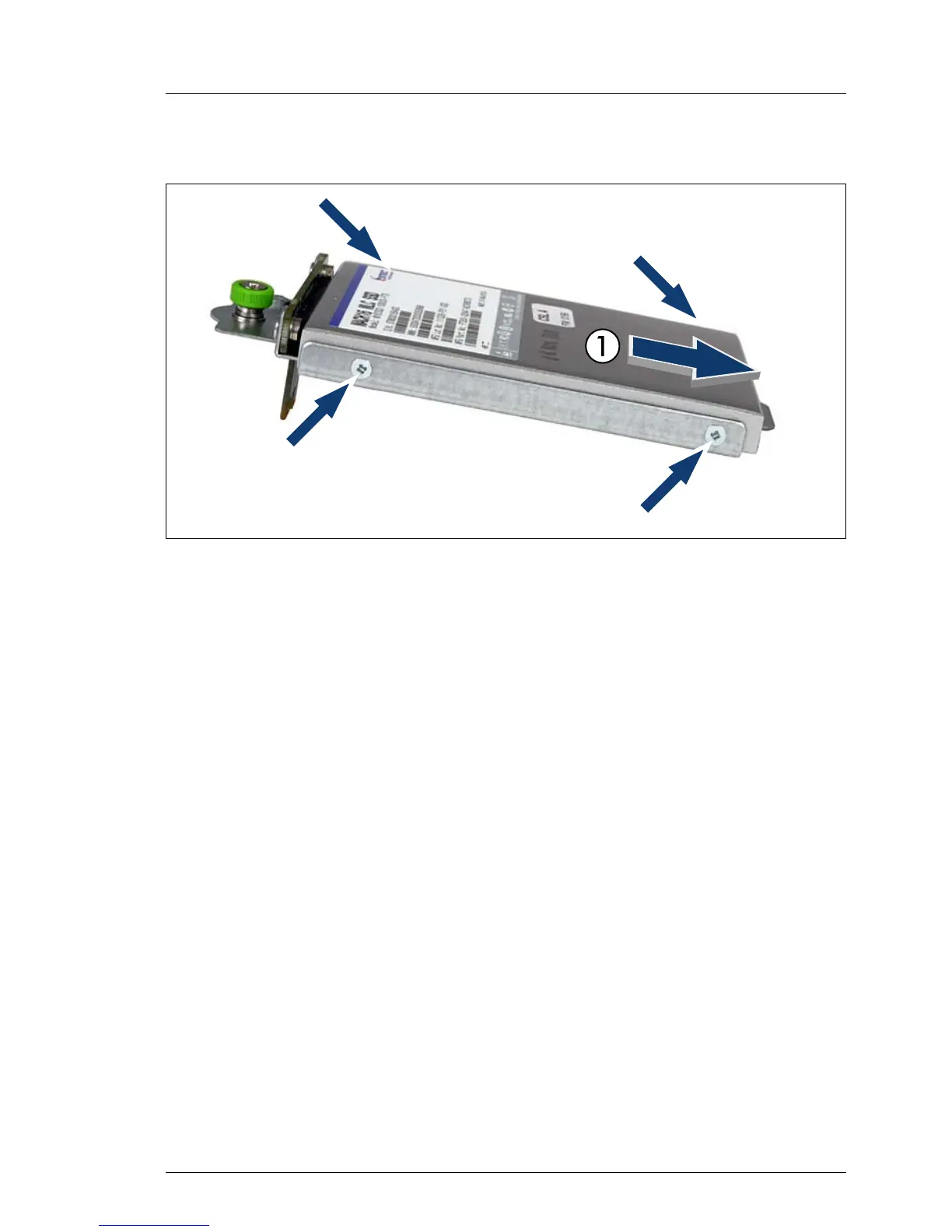

Figure 29: Removing the screws from the mounting frame
Ê Remove the 4 screws from the mounting frame.
Ê Slide the drive from the mounting frame (1) in the direction of the arrow.
6.4.5 Concluding steps
Perform the following procedures to complete the task:
Ê Close the server blade as described in section "Closing the server blade" on
page 56.
Ê Reinstall and secure the server blade in the system unit as described in
section "Installing the server blade in the system unit" on page 57.
Ê If applicable, close the rack door as described in section "Closing the rack
door" on page 62.
