BX924 S4 Upgrade and Maintenance Manual 135
Mezzanine cards
7.2.3 Installing a mezzanine card
The following section illustrates how to install a mezzanine card in slot 2.
Removing the mezzanine card carrier

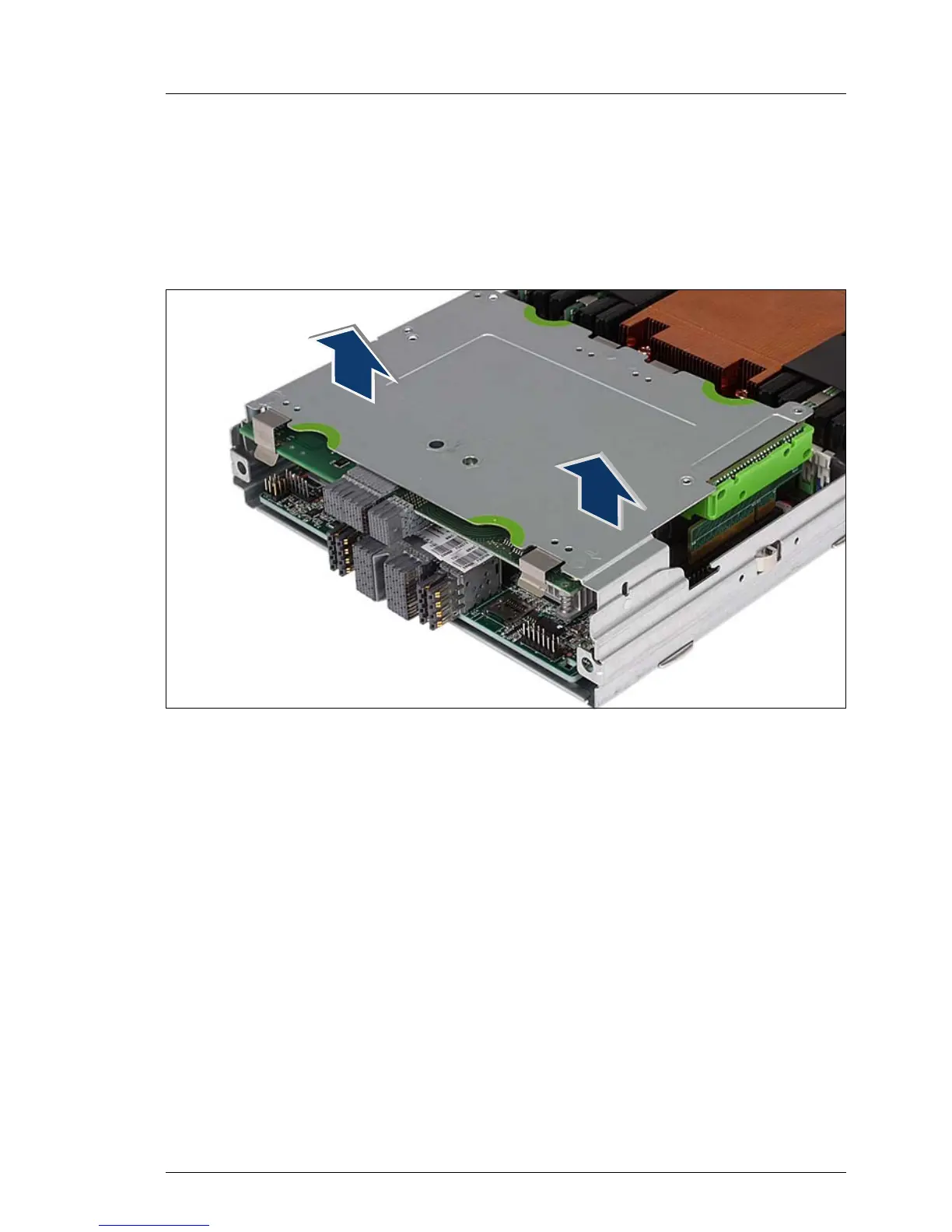

Figure 43: Removing the mezzanine card carrier
Ê Remove the mezzanine card carrier from the server blade housing by lifting
it up, keeping it as horizontal as possible.
