BX924 S4 Upgrade and Maintenance Manual 239
System board components
Ê Remove the server blade from the system unit as described in section
"Removing the server blade from the system unit" on page 54.
Ê Open the server blade as described in section "Opening the server blade"
on page 55.
10.2.3.3 Removing the UFM

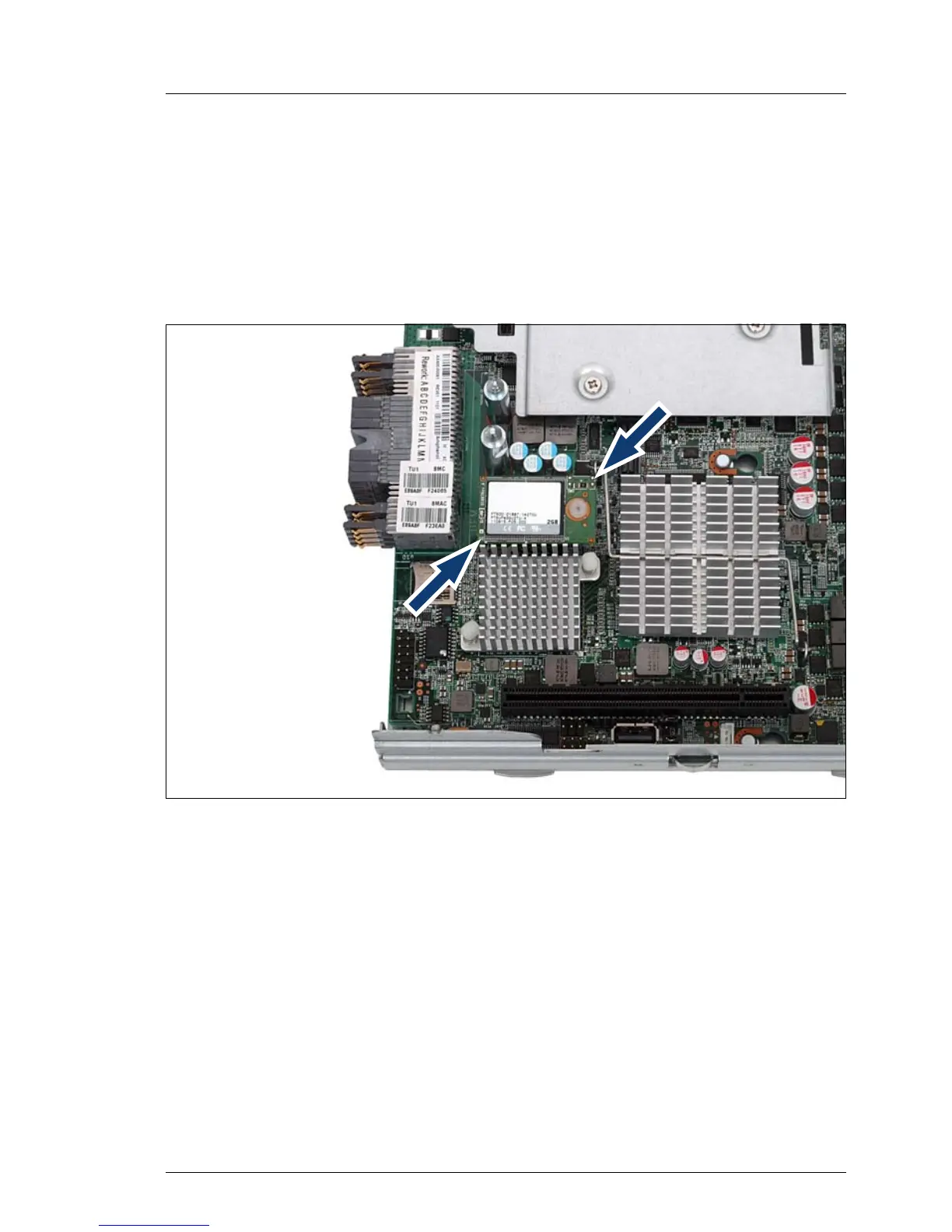

Figure 107: Removing the UFM
Ê Grasp the UFM on its corners (see arrows), then pull it out gradually and
carefully.
The UFM spacer remains on the system board.
