BX924 S4 Upgrade and Maintenance Manual 109
Hard disk drives / Solid state drives
Ê Remove the server blade from the system unit as described in section
"Removing the server blade from the system unit" on page 54.
Ê Open the server blade as described in section "Opening the server blade"
on page 55.
6.4.3 Removing SSD 0
Ê Remove the mezzanine carrier as described in section "Removing
mezzanine cards" on page 140

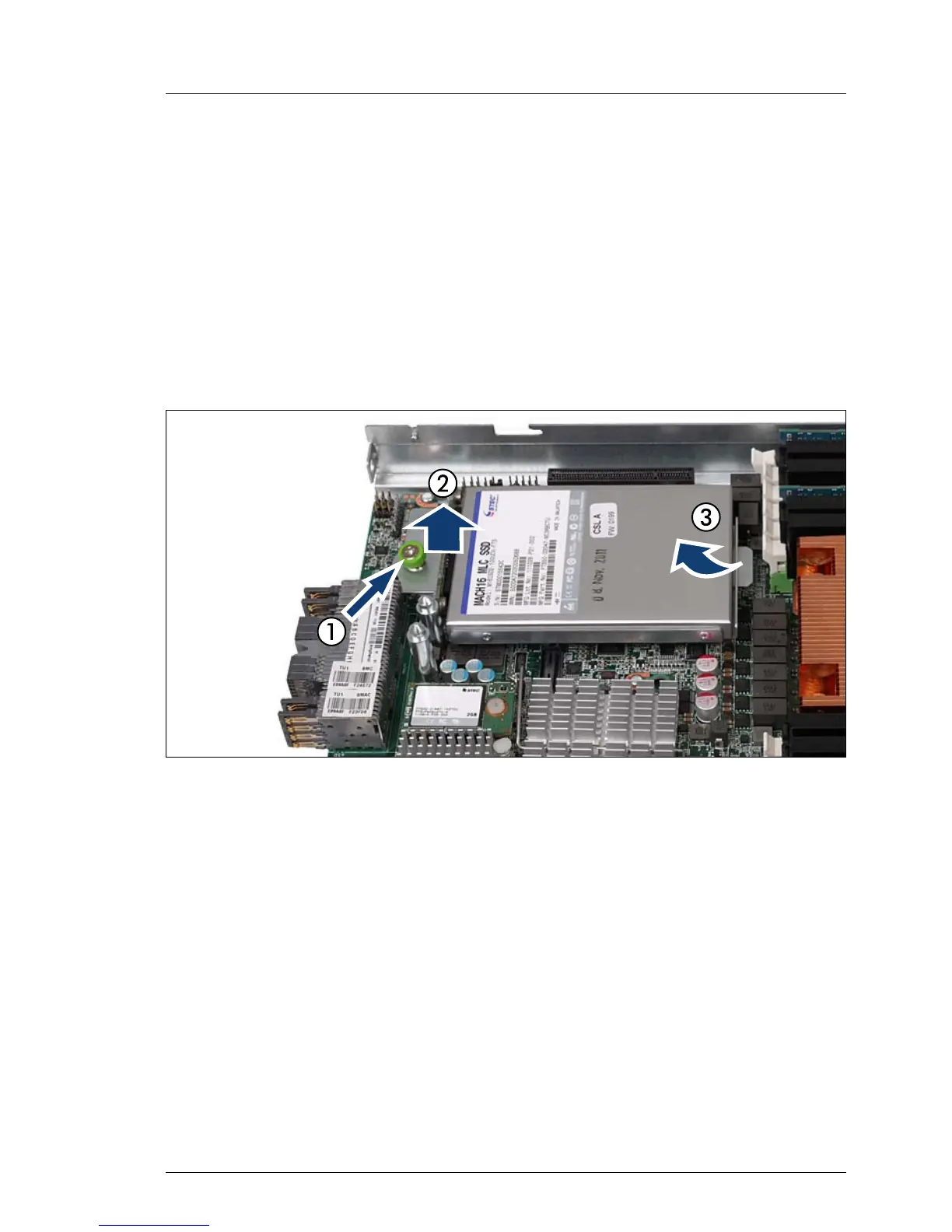

Figure 25: Removing SSD 0 from the mounting platform
Ê Loosen the knurled screw of the mounting kit (1).
Ê Unplug the mounting kit from the connector by lifting it off from the mounting
platform (2).
Ê Slide the mounting kit out of the cut-out (3) of the mounting platform.
