Fujitsu PRIMERGY BX924 S4 - Installing the New Onboard SAS Enabling Key

260 Upgrade and Maintenance Manual BX924 S4
System board components
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20569-001.fm
10.4.4 Installing the new Onboard SAS Enabling Key

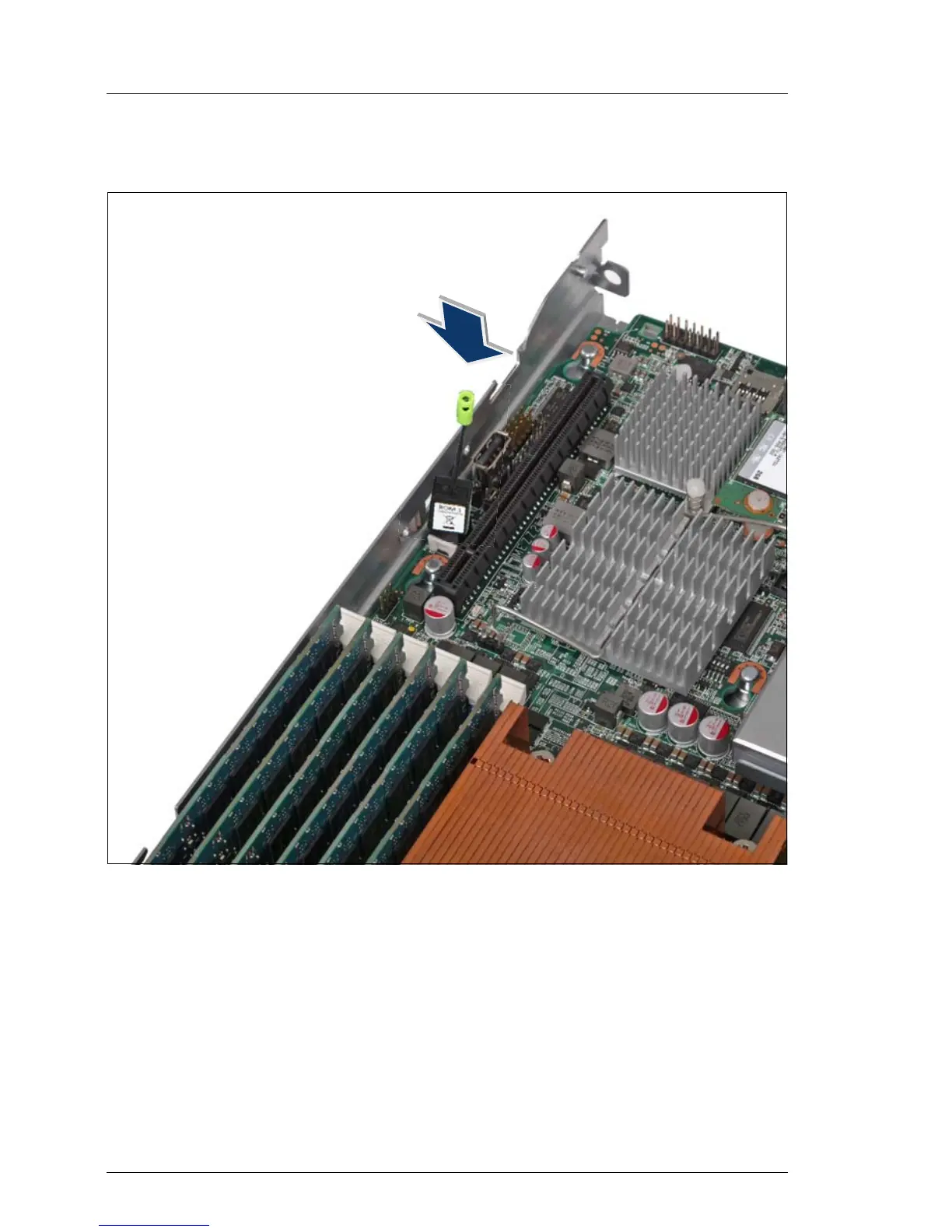

Figure 118: Installing the Onboard SAS Enabling Key
Ê Connect the Onboard SAS Enabling Key to the connector on the system
board.
