128 Upgrade and Maintenance Manual BX924 S4
Mezzanine cards
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20566-001.fm
7.1.3 Population rules for mezzanine cards

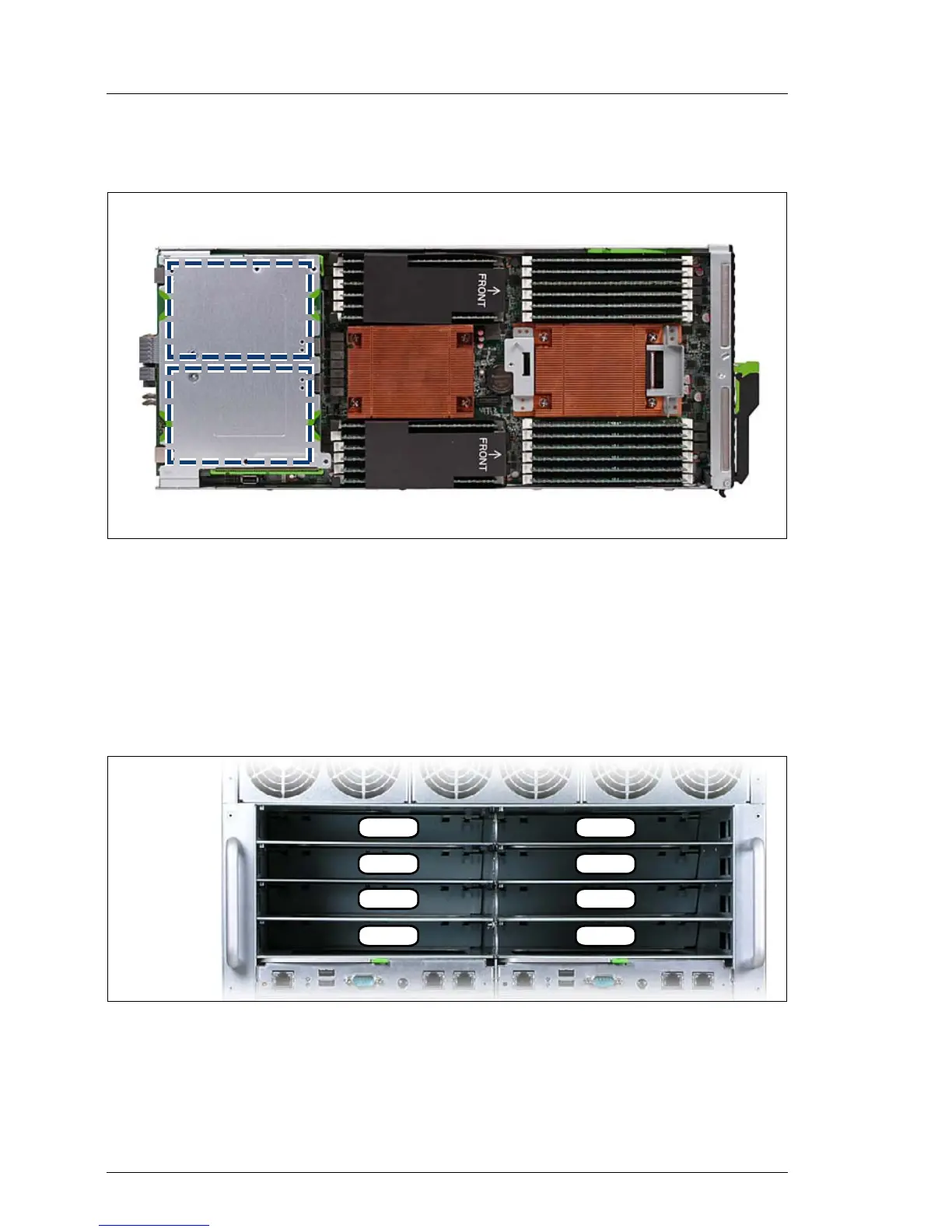

Figure 40: Slot numbering for mezzanine cards
The slots of the mezzanine cards in the server blade are connected to certain
connection blade slots on the back of the system unit. You therefore need to
observe how the connection blade slots are populated on the back of the
system unit when installing mezzanine cards.
Population rules for mezzanine cards in the BX900 S1/S2 system unit
Figure 41: Connection blade slots
Mezzanine Card 1
Mezzanine Card 2
CB1
CB3
CB5
CB7
CB2
CB4
CB6
CB8
Fabric 1
Fabric 2
Fabric 3
Fabric 4
