170 Upgrade and Maintenance Manual BX924 S4
Main memory
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20567-001.fm
8.5 Handling of memory air cowls
The memory modules of CPU 1 have to be covered by air cowls for cooling
reasons.
8.5.1 Installing the air cowls

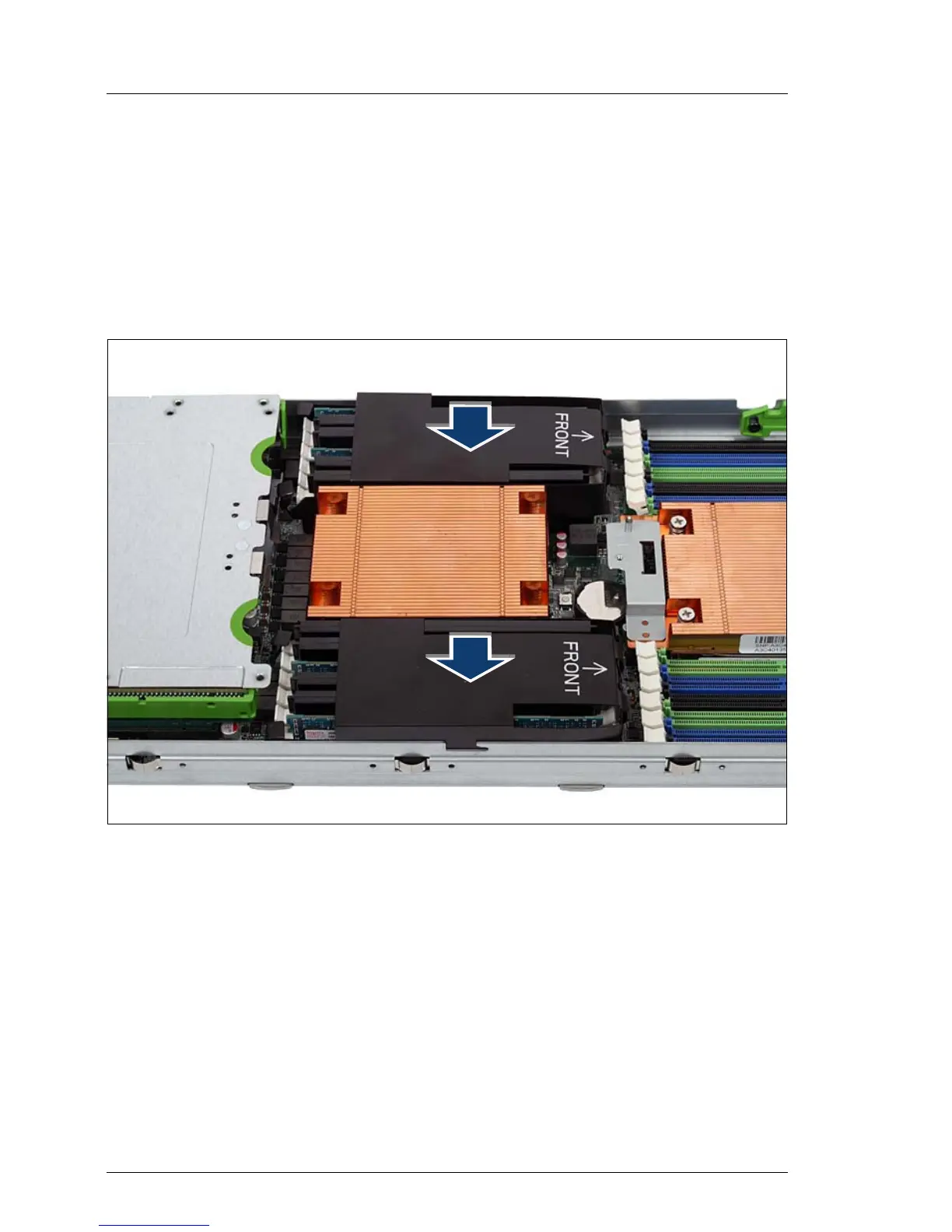

Figure 57: Installing the air cowls
Ê Place the air cowls over the DIMMs of CPU 1 as shown in the figure.
I For cooling reasons the air cowls must be installed when operating!
