12.3.2.2 Front panel indicators

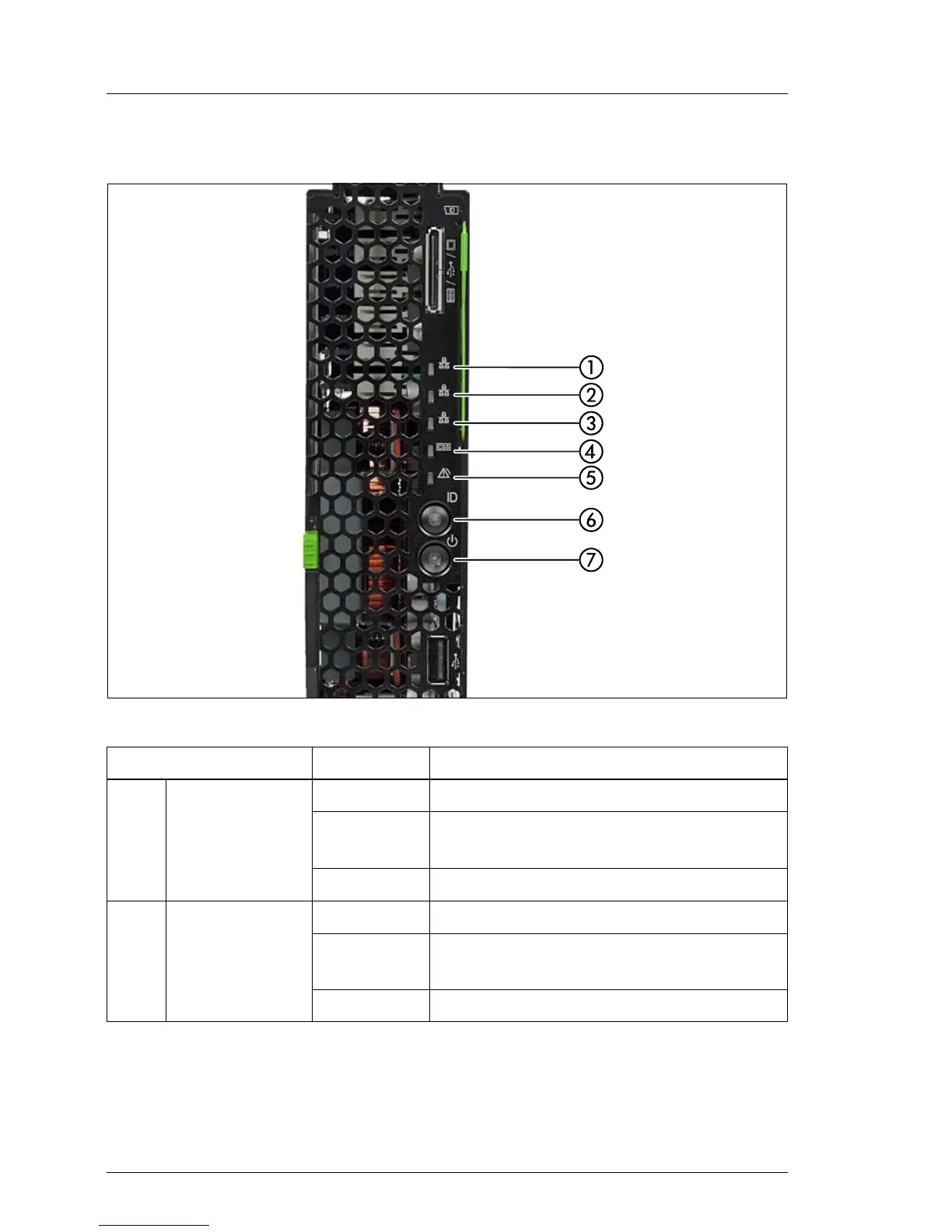

Figure 130: I/O panel indicators
Indicator Status Description
1 Fabric 3/4
off Fabric 3/4 no network connection
green
flashing
Fabric 3/4 an active network connection
green on Fabric 3/4 network connection
2 Fabric 2
off Fabric 2 no network connection
green
flashing
Fabric 2 an active network connection
green on Fabric 2 network connection
