Fujitsu PRIMERGY BX924 S4

124 Upgrade and Maintenance Manual BX924 S4
Mezzanine cards
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20566-001.fm
7.1.1 Installing riser cards
Installing the riser card x8

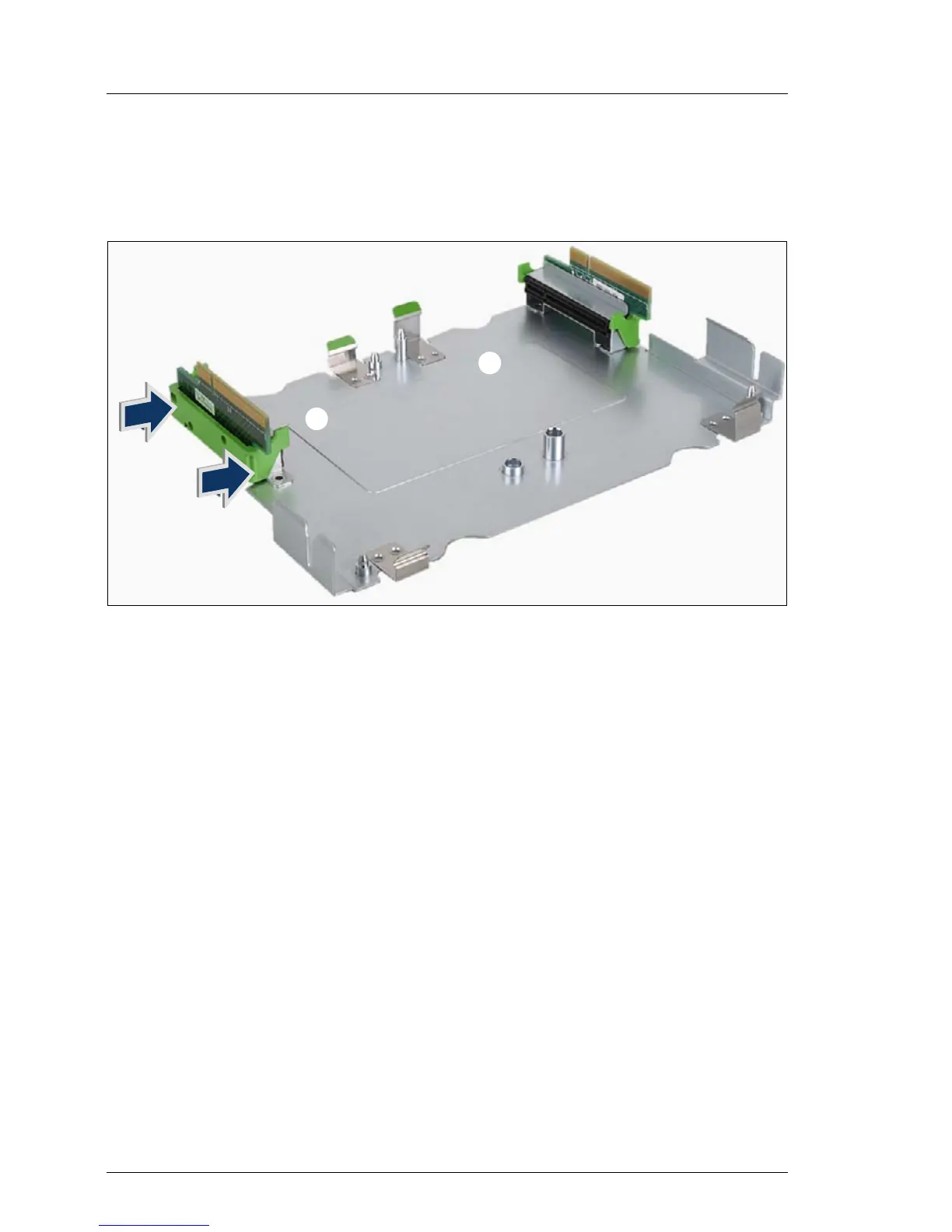

Figure 36: Installing the riser card x8
Ê Connect the riser card to the carrier. Make sure that the green clips click into
place.
/
