Basic hardware procedures
4.1.2 Locating the defective server blade

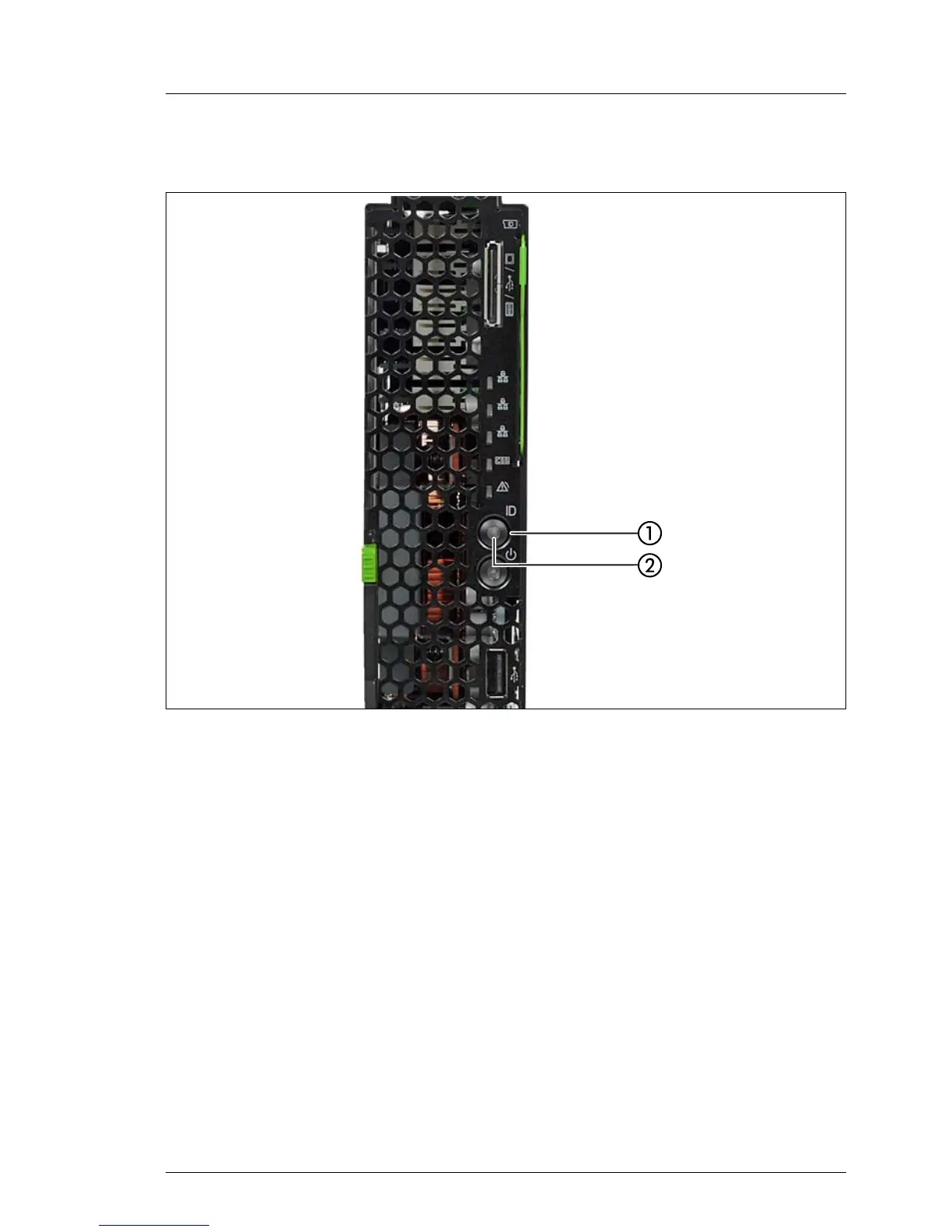

Figure 3: ID button and indicator on front panel
When working in a datacenter environment, switch on the ID indicator on the
front panel of the server blade for easy identification.
Ê Press the ID button on the front panel (1), use the management blade web
interface, or use the ServerView Operation Manager user interface to switch
on the ID indicators (2).
I For further information, refer to the "ServerView Suite Local Service
Concept (LSC)" manual.
Ê When using management blade web interface to toggle the ID indicator,
open the Components - System - Server Blades - Server Blade-x menu for the
desired server blade, and press the Locate button in the server blade status
frame.
Ê When using ServerView Operations Manager to toggle the ID indicator,
choose Single System View and press the Locate button.
