268 Upgrade and Maintenance Manual BX924 S4
System board components
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20569-001.fm
10.5.4 Installing the system board
10.5.4.1 Mounting the system board
Ê Hold the new system board by the memory module ejectors.
Ê At a slight angle, lower the system board into the chassis.

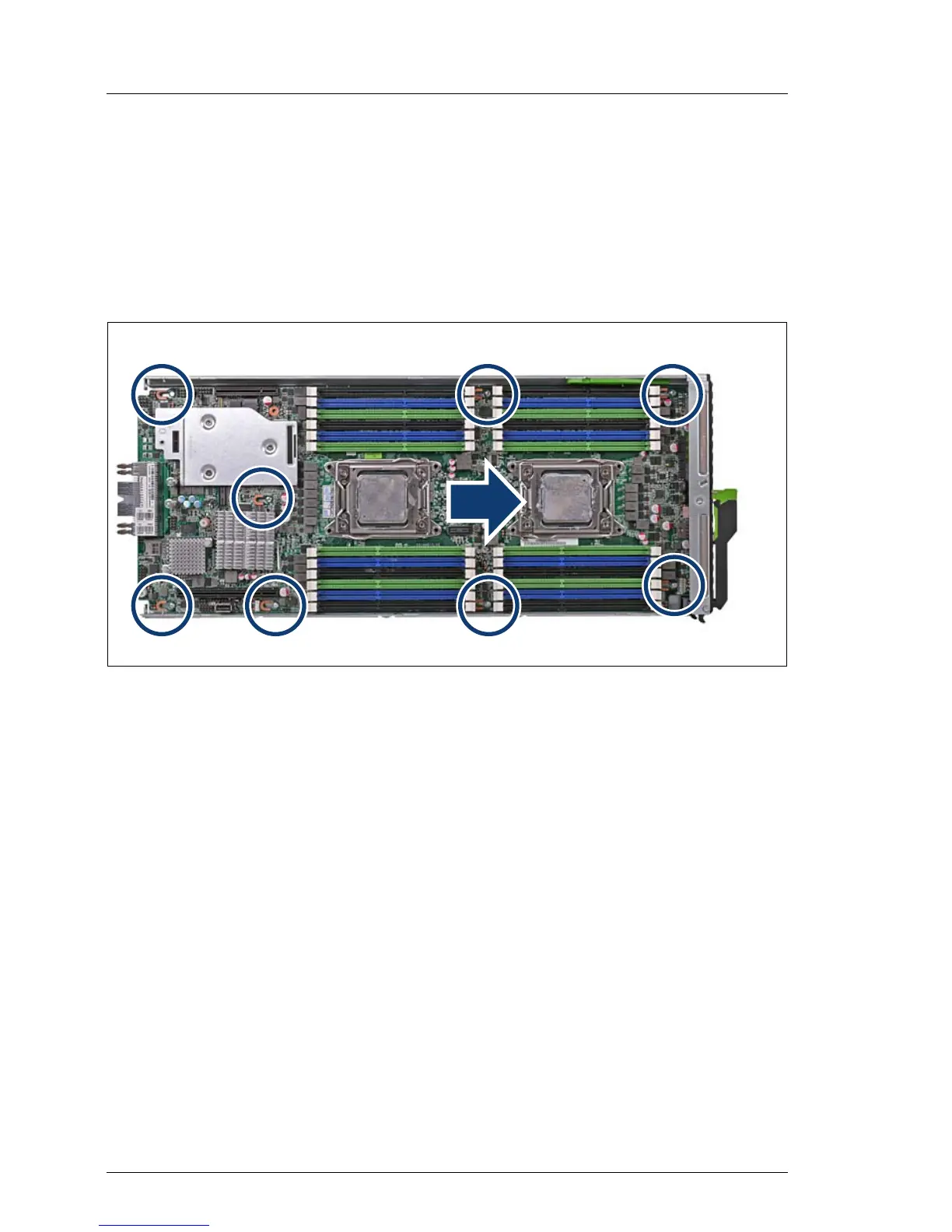

Figure 122: Detaching the system board (B)
Ê Lower the system board onto the centering bolts (see circles).
Ensure that the system board is properly seated on the centering bolts.
Ê Carefully shift the system board towards the server front as far as it will go
(see arrow).
