BX924 S4 Upgrade and Maintenance Manual 211
Processors
9.5.3 Installing processor heat sinks

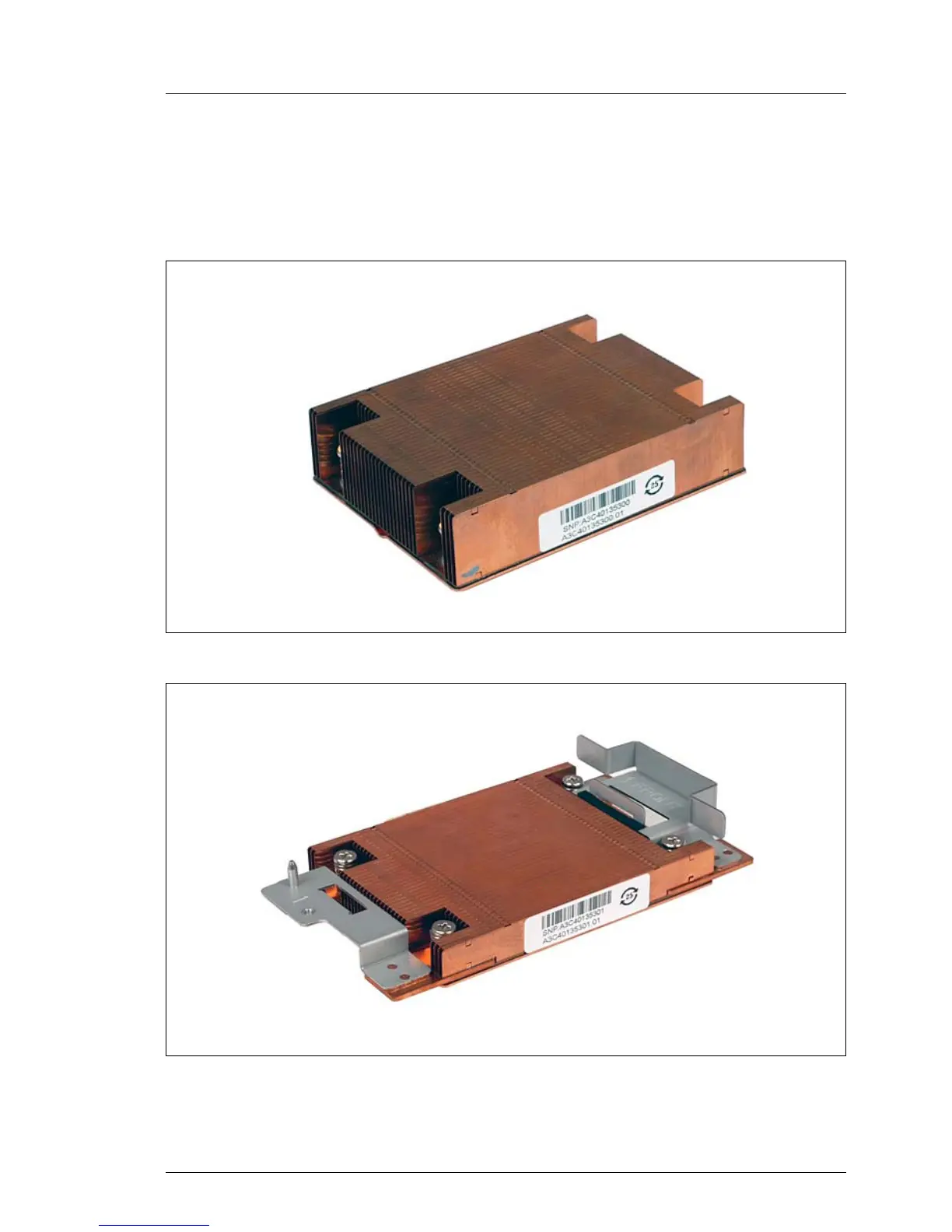

The following figures show the heat sink types used in the BX924 S4 server
blade:
Figure 87: Heat sink for CPU 1
Figure 88: Heat sink for CPU 2 with holder for SSD #1/HDD #1
