BX924 S4 Upgrade and Maintenance Manual 125
Mezzanine cards
Installing the riser card x16

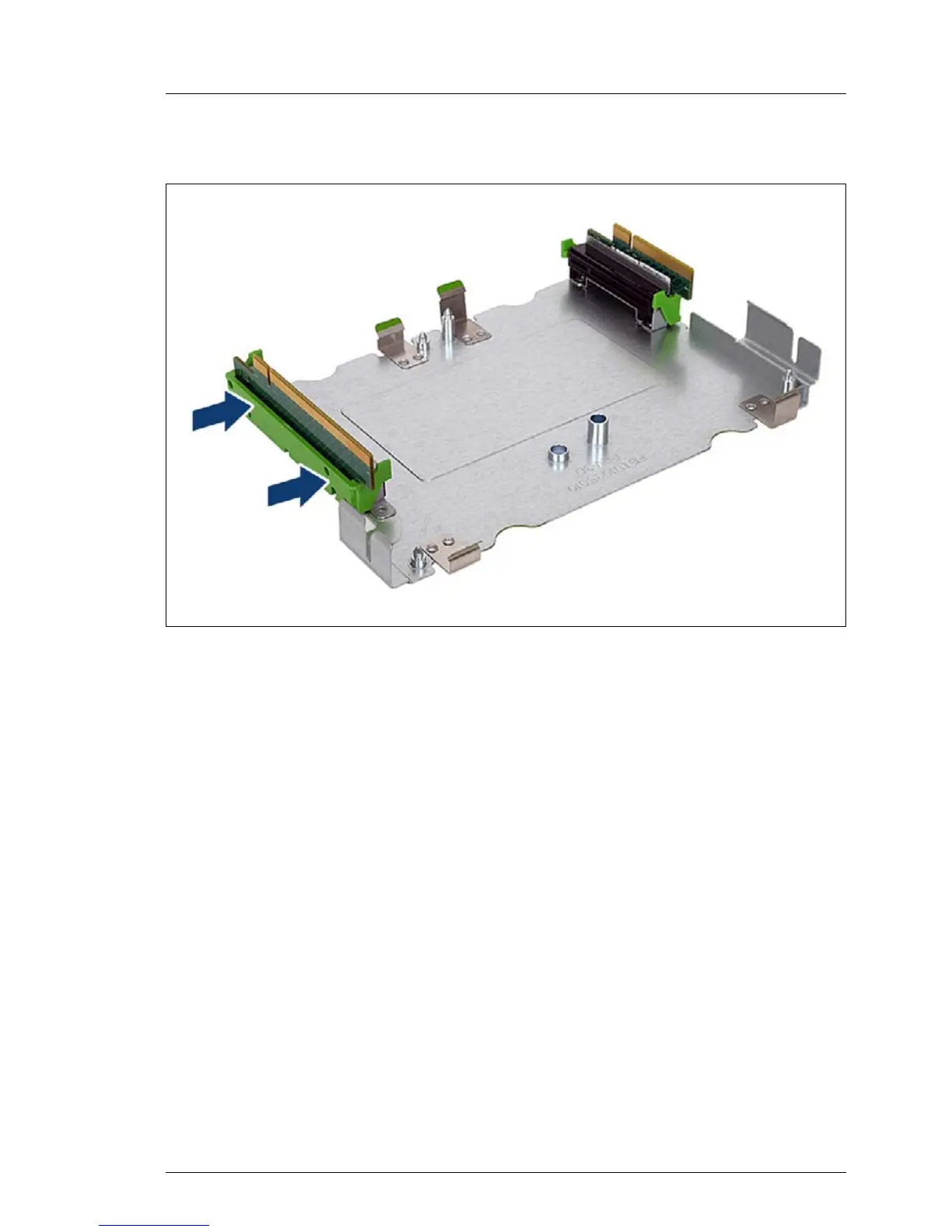

Figure 37: Installing the riser card x16
Ê Connect the riser card to the carrier. Make sure that the green clips click into
place.
