112 Upgrade and Maintenance Manual BX924 S4
Hard disk drives / Solid state drives
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20565-001.fm
Removing HDD/SSD 1 from top of the heat sink of CPU 2

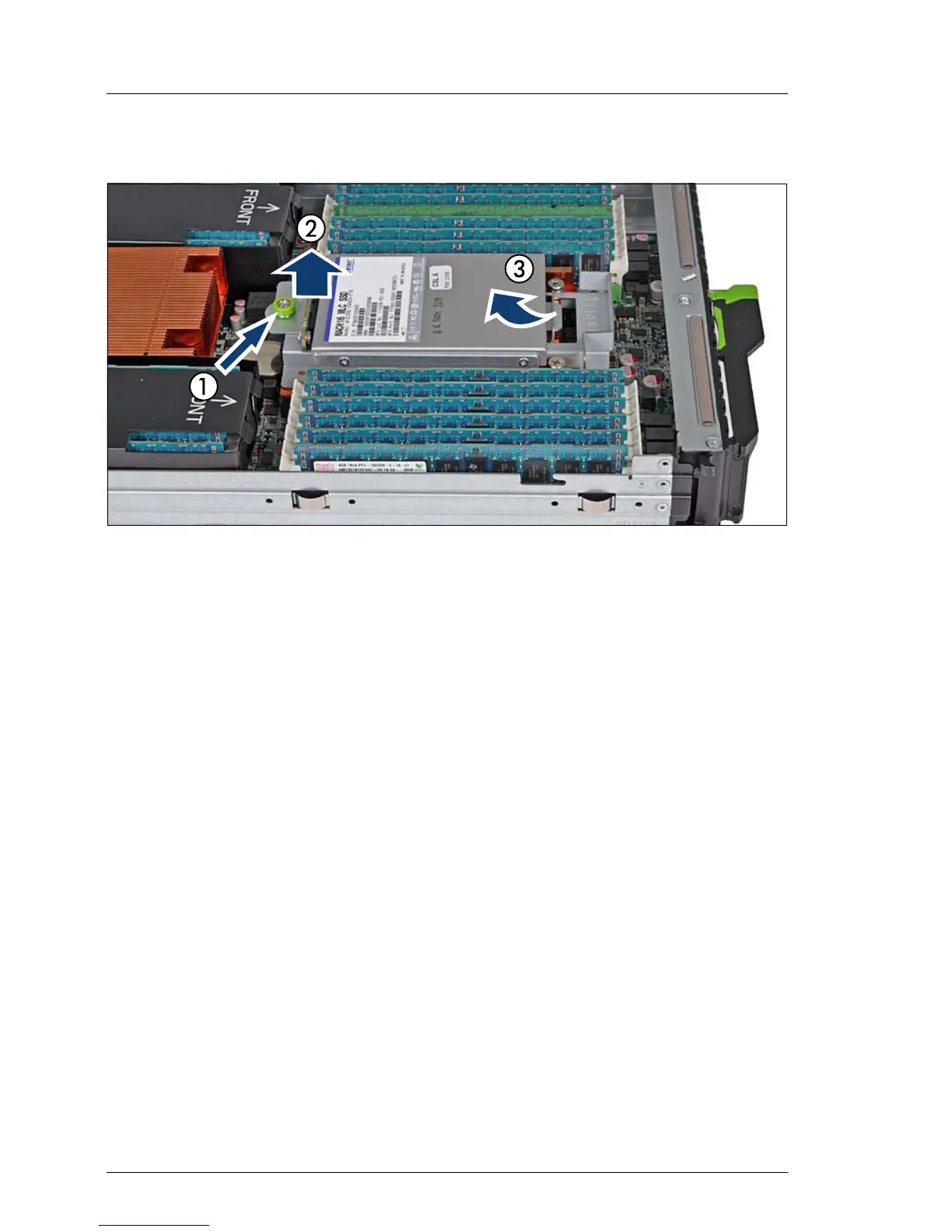

Figure 28: Removing HDD/SSD 1 from the mounting platform
Ê Loosen the knurled screw of the mounting kit (1).
Ê Unplug the mounting kit from the connector by lifting it off from the mounting
platform (2).
Ê Slide the mounting kit out of the cut-out (3) of the mounting platform.
