BX924 S4 Upgrade and Maintenance Manual 119
Hard disk drives / Solid state drives

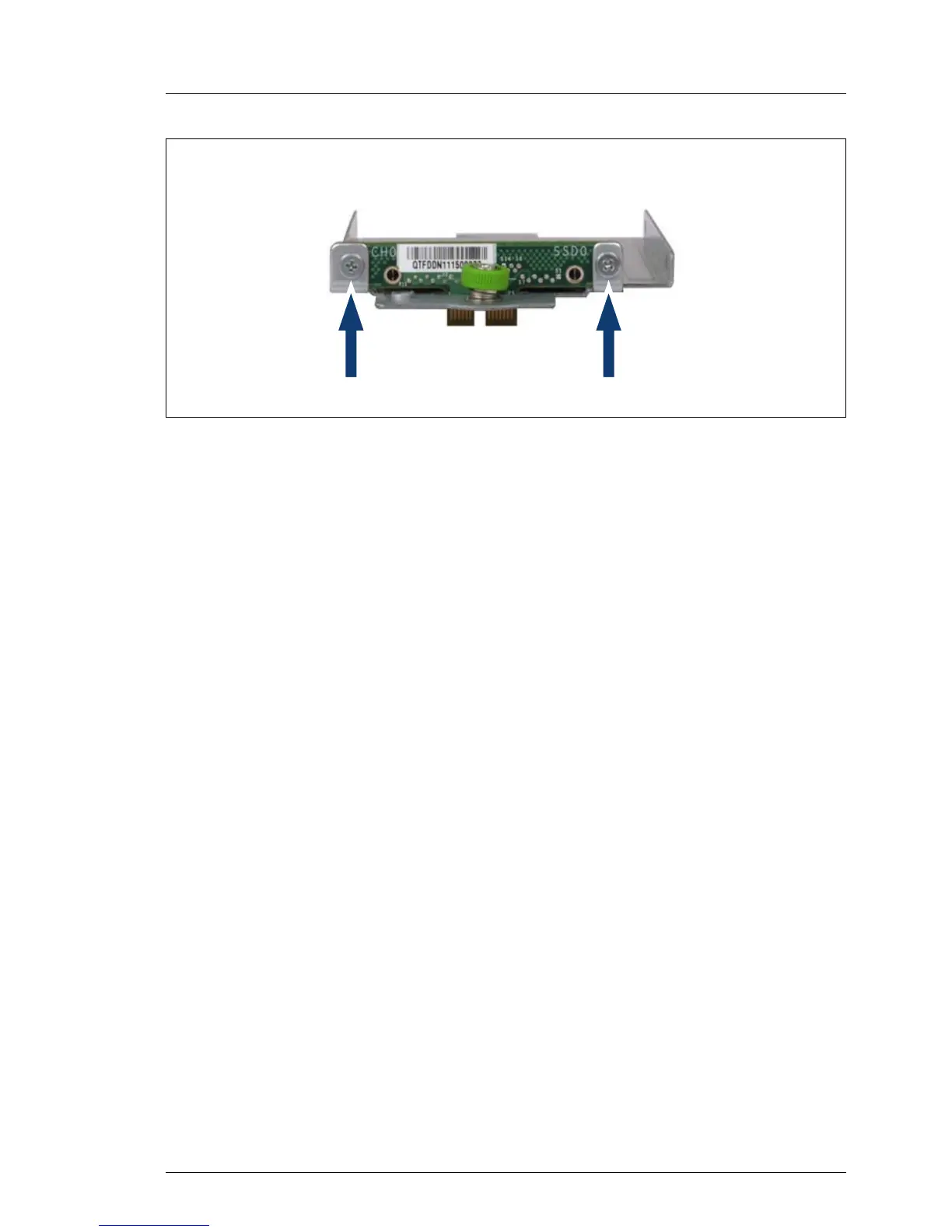

Figure 32: Installing the SAS / PCH backplane
Ê Install the new SAS / PCH backplane to the mounting frame.
Ê Tighten the two screws (see arrows) to the new SAS / PCH backplane.
