Installing the mezzanine card carrier

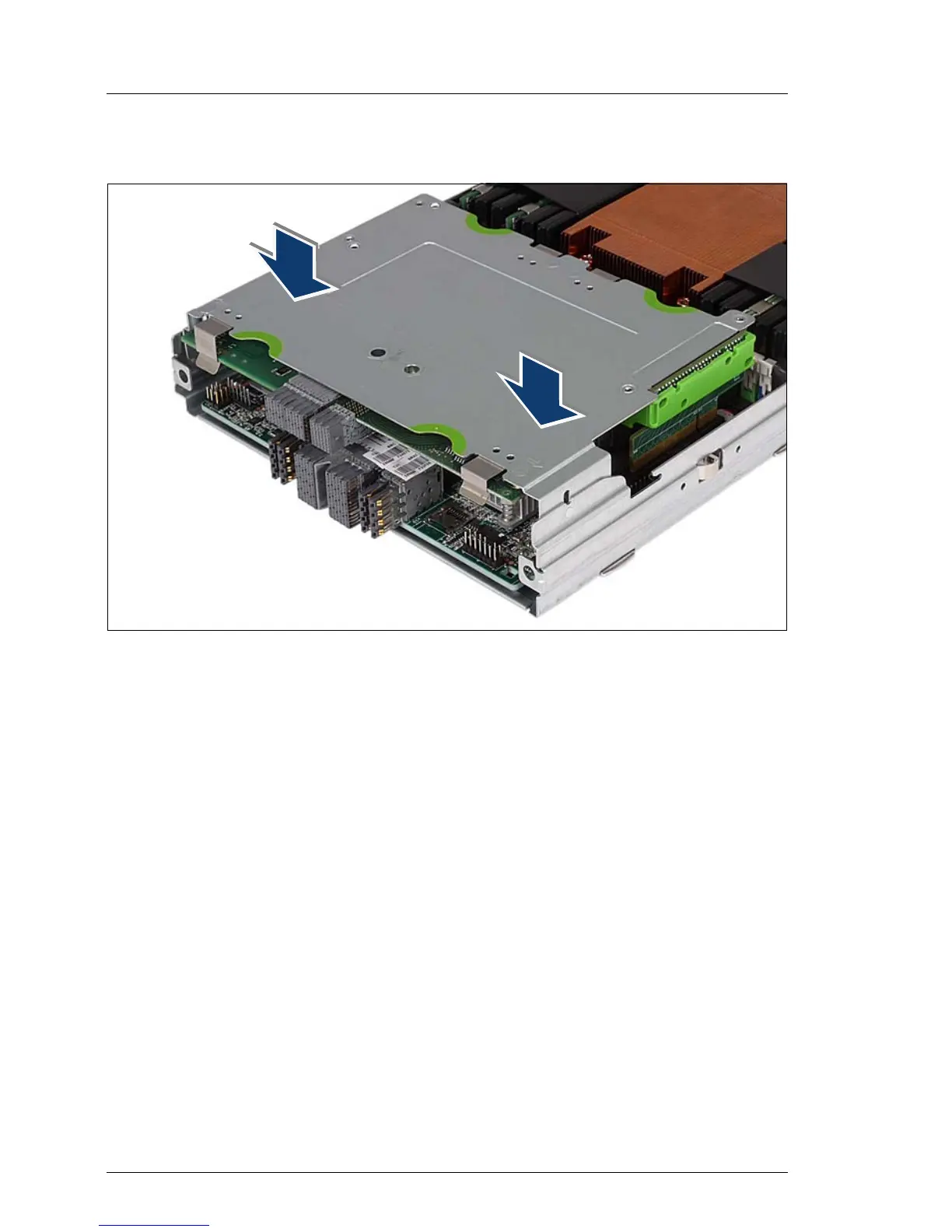

Figure 47: Installing the mezzanine card carrier
Ê Install the carrier with the mezzanine cards in the server blade housing. As
you do this, the riser cards are inserted in the corresponding system board
slots. Make sure that the coding on the carrier matches that on the server
blade housing.
Ê Close the server blade, re-insert it in the system unit and switch it on as
described in section "Closing the server blade" on page 56 and following.
