142 Upgrade and Maintenance Manual BX924 S4
Mezzanine cards
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20566-001.fm

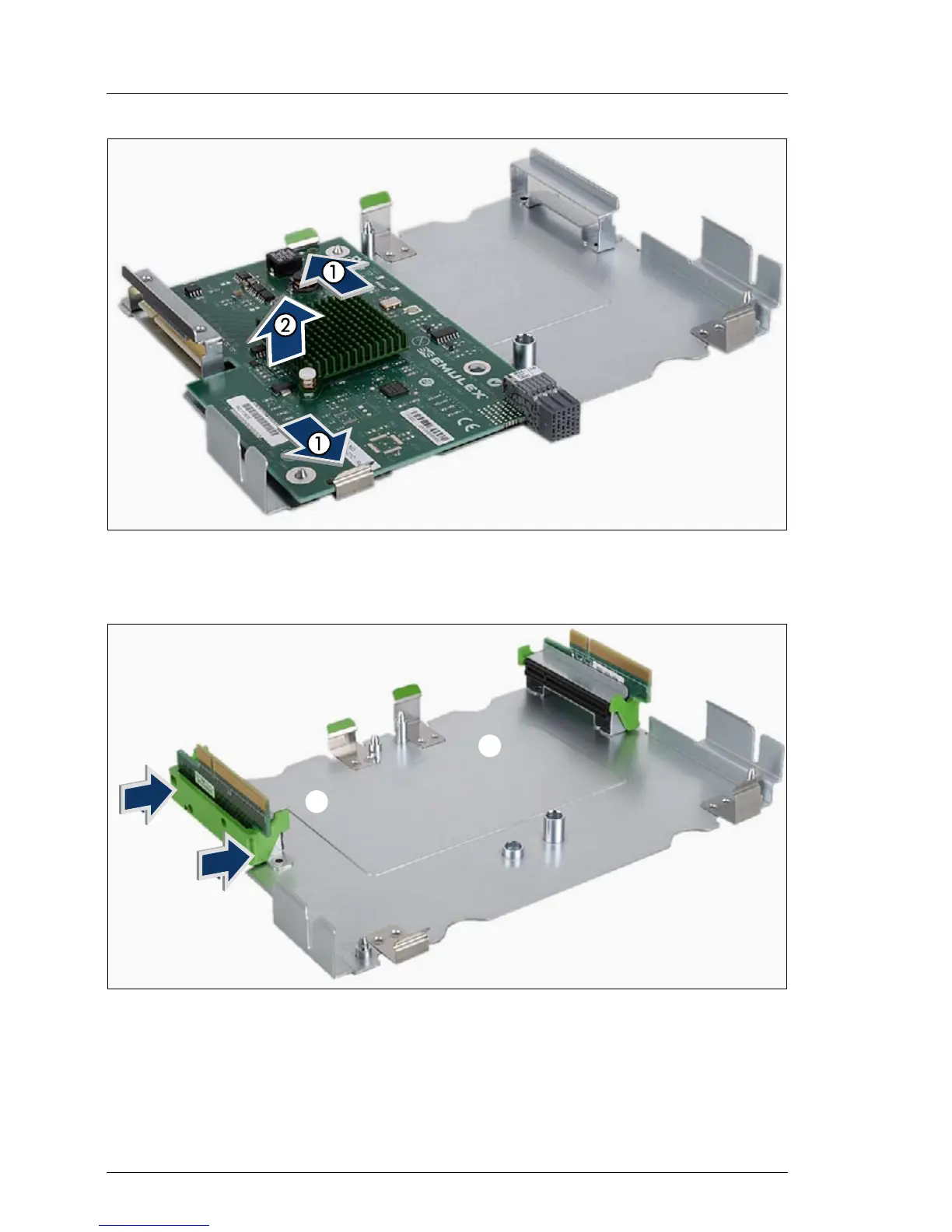

Figure 50: Removing the mezzanine card
Ê Press the two clips(1) and replace the mezzanine card(2).
Figure 51: Reconnecting the riser card
Ê Connect the riser card to the mezzanine card. Make sure that the green clips
click into place.
/
