206 Upgrade and Maintenance Manual BX924 S4
Processors
© cognitas. Gesellschft für Technik-Dokumentation mbH 2013 Pfad: C:\Programme\FCT\tim_app\tim_local\work\PICHOL\OBJ_DOKU-20568-001.fm
Ê Lower the processor straight down without tilting or sliding it in the socket.
V CAUTION!
– Ensure that the processor is level in the socket.
– Be careful not to touch or bend the pins on the processor socket.
– Never touch the underside of the processor. Even minor soiling
such as grease from the skin can impair the processor’s operation
or destroy the processor.
– Ensure not to scrape or dent the processor edges.

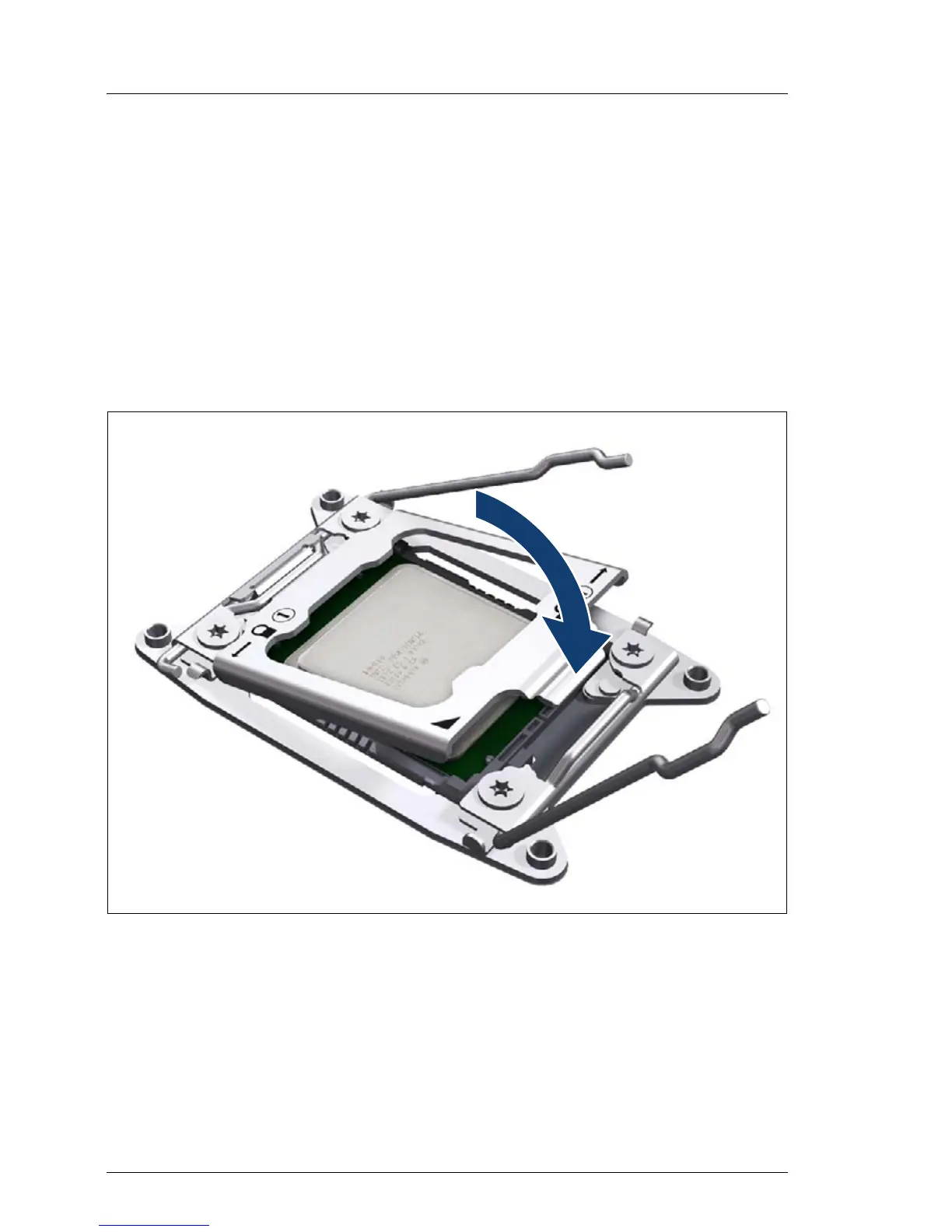

Figure 84: Closing the load plate
Ê Carefully lower the load plate over the processor.
V CAUTION!
Always replace the socket cover if you remove the processor in the
socket!
