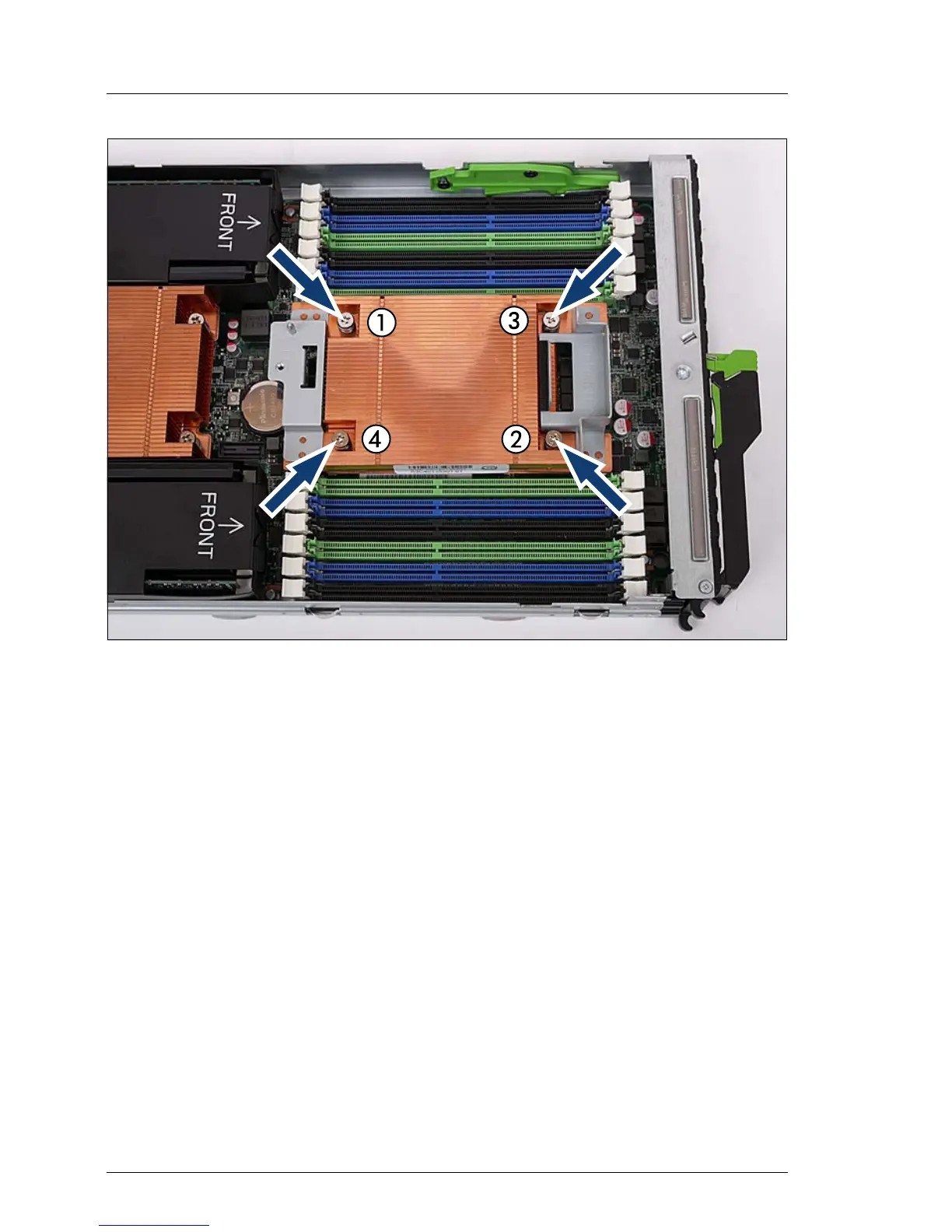

Figure 95: Fastening the heat sink for CPU 2
Ê Keep pressing on the heatsink to avoid tilting until the screws (1) and (2) are
fixed.
Ê Fasten the four captive screws (combihexagon) on the heat sink in the
following pattern: (1)->(2)->(3)->(4).
Torque: 0.6 Nm, not applicable for the Japanese market
