Release all EDSFF SSD modules and pull them out a few centimeters, see
"Removing an EDSFF SSD module" on page 180.
CAUTION
The EDSFF SSD modules do not need to be removed out of the
chassis.
▶
If you want to remove them nevertheless, check if all EDSFF
SSD modules are uniquely identified so that you can reinsert
them into their original bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing an EDSFF dummy module" on page
177
.
Removing the defective 16x EDSFF SSD backplane

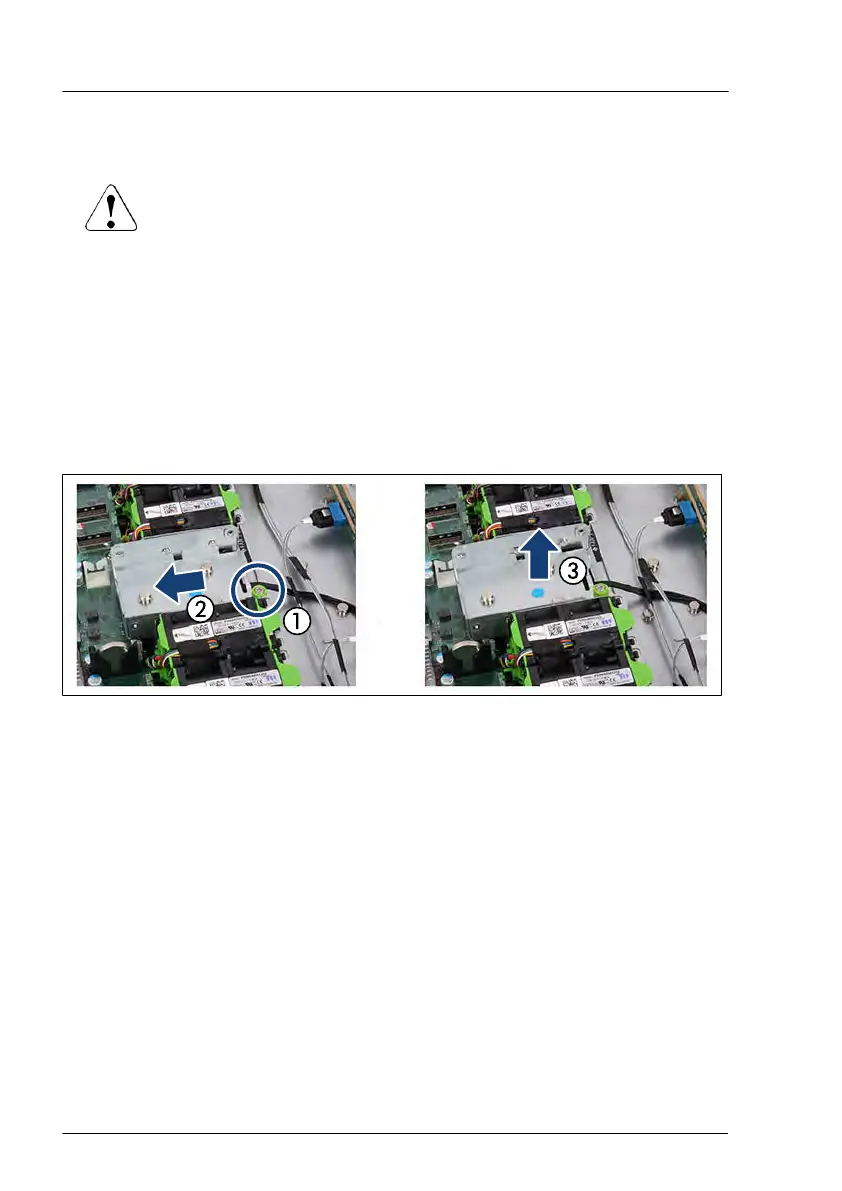

Figure 103: Removing the FBU carrier
▶
Loosen the knurled screw (1).
▶
Push the FBU carrier in direction of the arrow to release the bolts (2).
▶
T
ake out the FBU carrier (3).
