Fujitsu PRIMERGY RX2530 M6

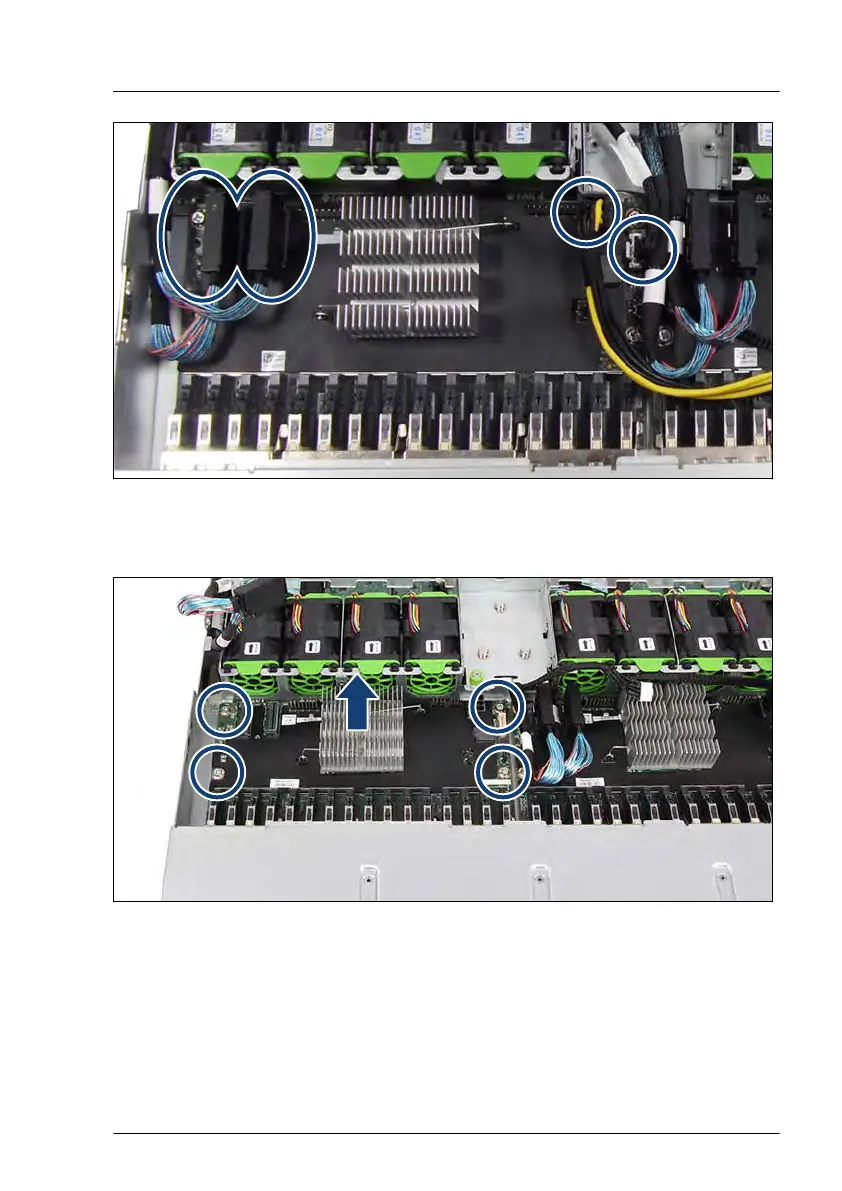

Figure 104: Disconnecting the cables from the 16x EDSFF SSD backplane
▶
Disconnect all cables from the SSD backplane (see circles).
Figure 105: Removing the 16x EDSFF SSD backplane
▶
Release the four screws (see circles).
▶
T
ake out the SSD backplane.
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 185
