Fujitsu PRIMERGY RX2530 M6

Installing the new 16x EDSFF SSD backplane
A
A

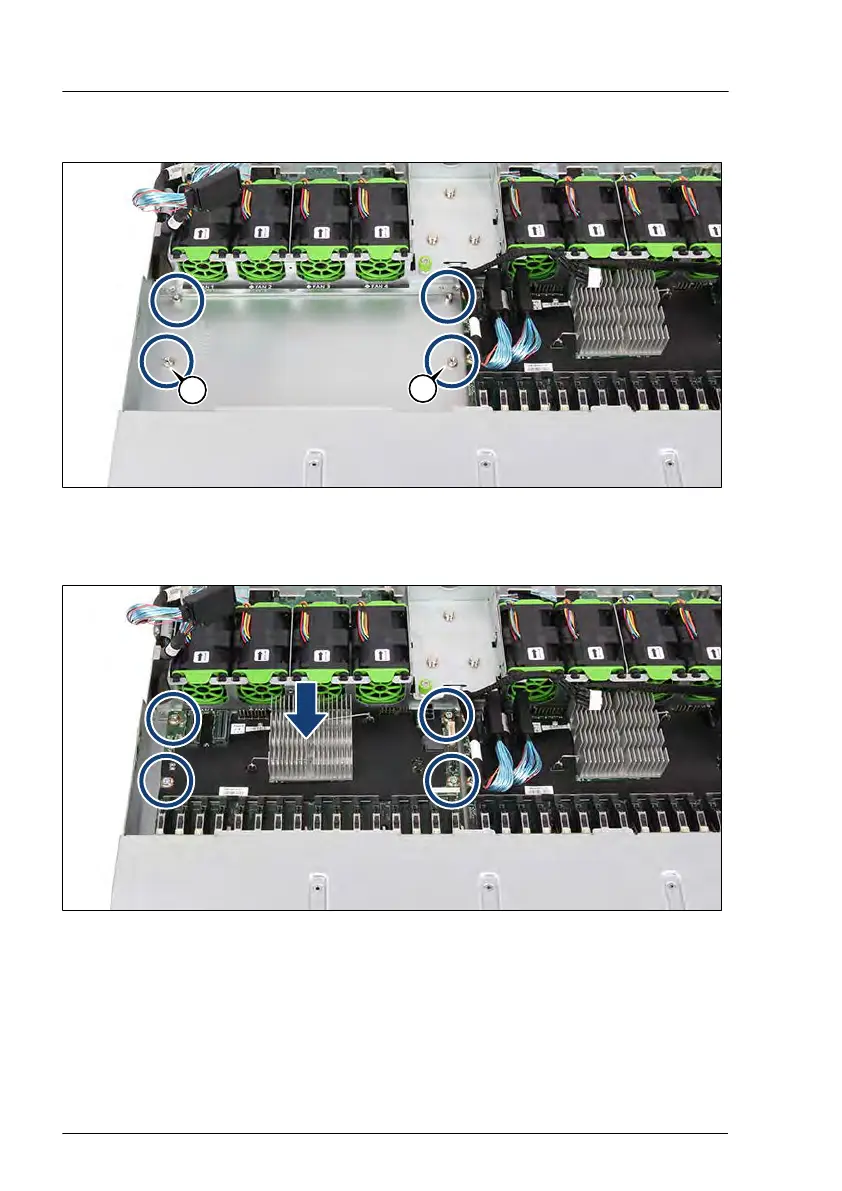

Figure 106: Bolts for installing SSD backplane
▶
Notice the bolts (see circles). Two of the bolts are centering bolts (A).
Figure 107: Installing the 16x EDSFF SSD backplane
