Position the SSD backplane on the four bolts.
CAUTION
▶
Ensure that none of the cables are strained or damaged!
▶
Fasten the four screws (see circles).

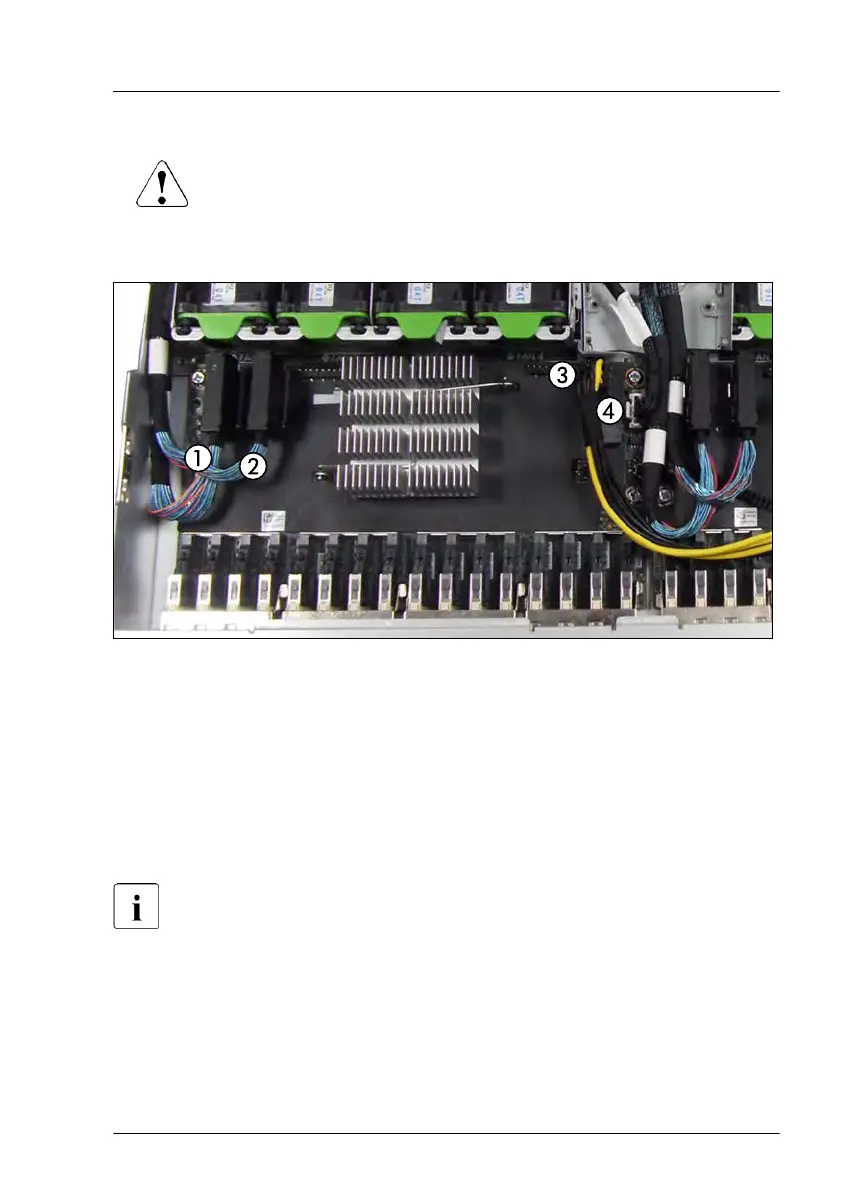

Figure 108: Connecting the cables to the 16x EDSFF SSD backplane
▶
Connect the following cables to the SSD backplane:
1 NVMe cable, leading to system board
2 NVMe cable, leading to system board
3 Power cable
4 OOB cable
For the cable plan, see "Appendix B" on page 427.
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 187
