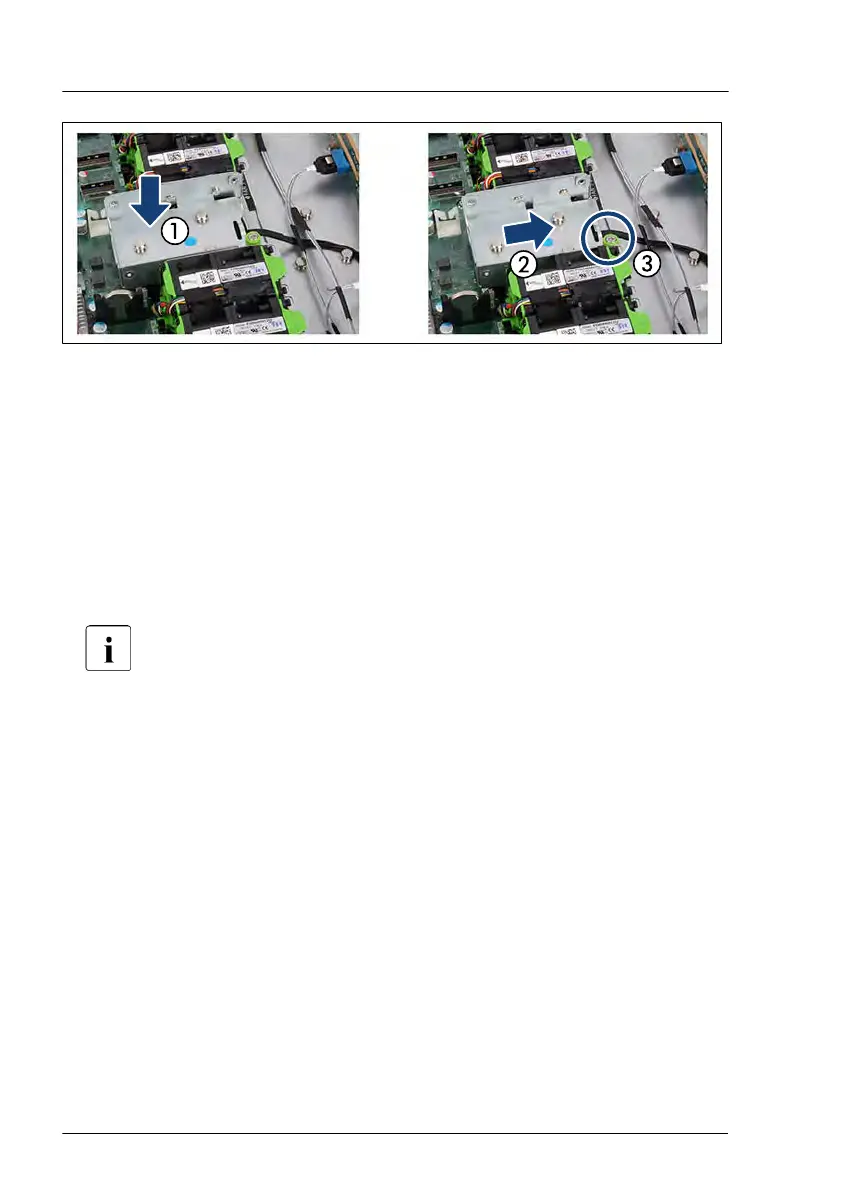

Figure 109: Installing the FBU carrier
▶
Insert the FBU carrier on the bolts (1).
▶
Push the FBU carrier in direction of the arrow to engage the bolts (2).
▶
Fasten the FBU carrier with the knurled screw (3).
Concluding steps
▶
Insert all EDSFF SSD modules, see "Installing an EDSFF SSD module" on
page
178.
Make sure that you reinstall the EDSFF SSD module in the bay it was
located before the SSD backplane replacement.
▶
Insert all dummy modules, see "Installing an EDSFF dummy module" on
page 181.
▶
"Reassembling" on page
57.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
Hard disk drive (HDD) / solid state disk (SSD)
188 Upgrade and Maintenance Manual RX2530 M6
