Align the notch (A) on the bottom of the module with the crossbar in the slot.
▶
Press down on the memory module (1) until the securing clips snap into the
cutouts at each end of the module (2).

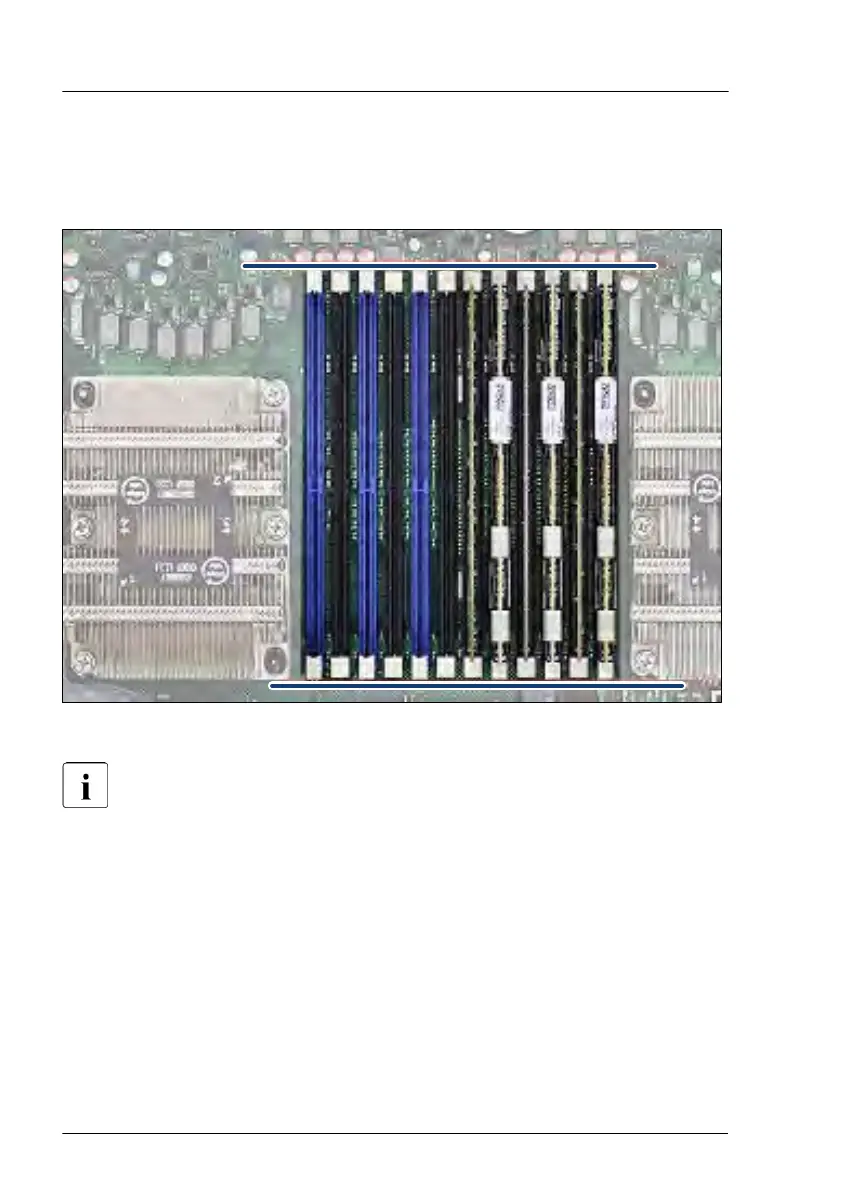

Figure 185: Correct position of securing clips
To improve the contact of the memory module perform the following
steps:
▶
Eject the memory module again by pressing out the securing clips at each
end of the memory slot.
▶
Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
▶
Check if all securing clips are in the correct position, see Figure 185.
Concluding steps
▶
"Installing the air duct" on page
74.
▶
"Reassembling" on page 57
.
Main memory
