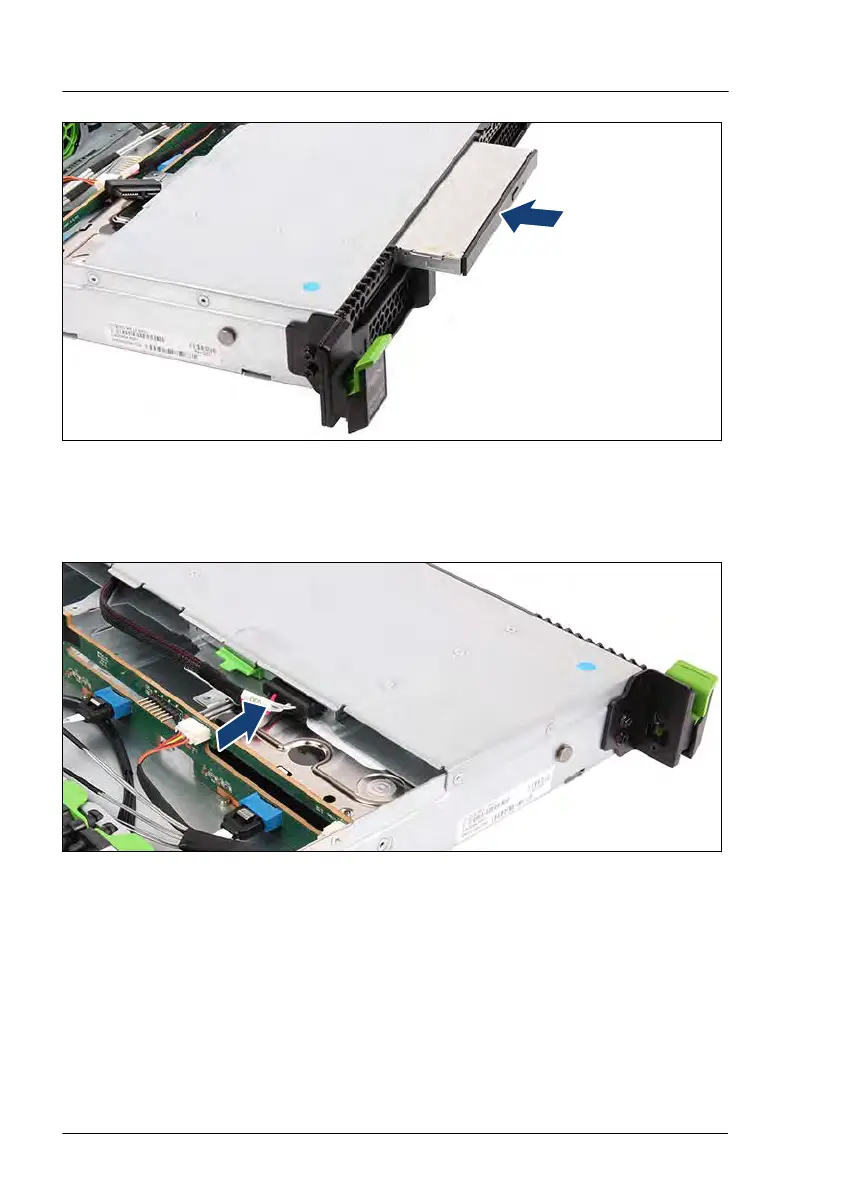

Figure 228: Installing the ODD
▶
Push the ODD into the bay until the ODD latch engages in the HDD
backplane.
Figure 229: Connecting the cable to the ODD
▶
Connect the ODD cable to the ODD and the system board, see "Routing
ODD cable - example 3.5-inch HDD configuration" on page
314
.
Concluding steps
▶
"Reassembling" on page
57.
▶
"Connecting the power cord" on page 62.
Accessible drives
