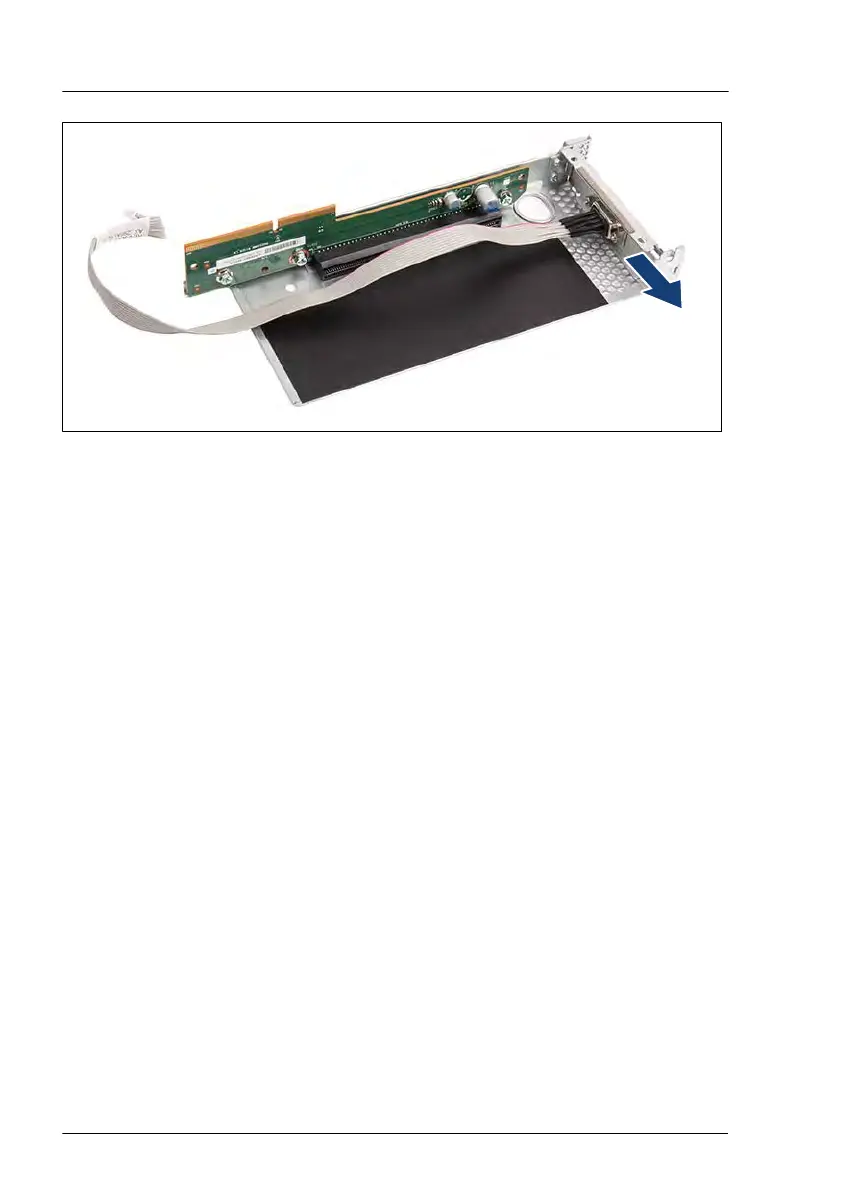

Figure 251: Removing the serial interface - example riser module 3
▶
Remove the serial interface.
Installing the slot cover
▶
Install the corresponding slot cover
, see "Installing the slot cover" on
page 229.
▶
Install the corresponding riser module, see "Installing a riser module" on
page 69.
Concluding steps
▶
"Reassembling" on page
57.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
▶
"Resuming BitLocker functionality" on page 93.
Serial interface
342 Upgrade and Maintenance Manual RX2530 M6
