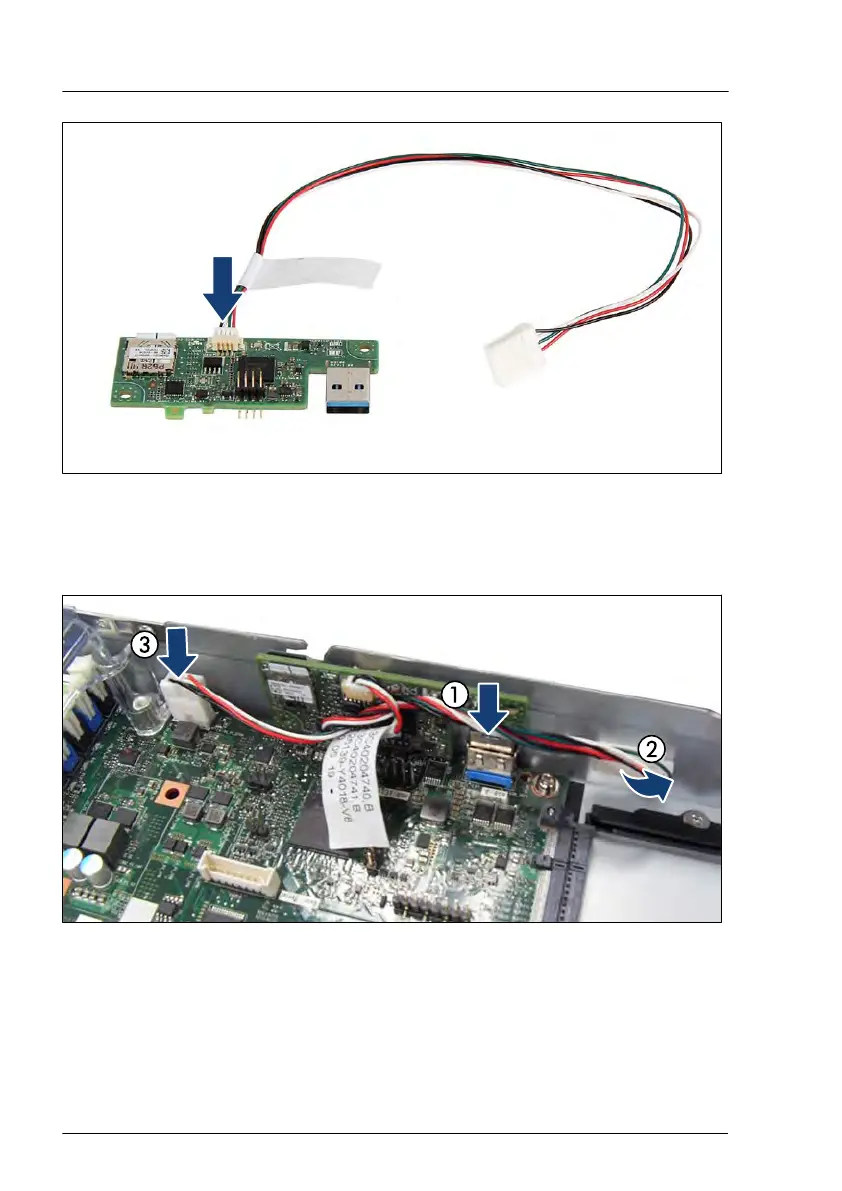

Figure 271: Connecting the cable to the Dual microSD 64GB Enterprise
▶
Connect the cable to connector "CON1" on the Dual microSD 64GB
Enterprise.
Figure 272: Installing the Dual microSD 64GB Enterprise
▶
Install the Dual microSD 64GB Enterprise into the connector "Internal USB
3.0" on the bottom system board (1).
▶
Route the cable in the cable clamp (2).
▶
Connect the cable to the connector "ROC" on the bottom system board (3).
System board and components
374 Upgrade and Maintenance Manual RX2530 M6
