Fujitsu PRIMERGY RX2530 M6

To Next Page

To Previous Page

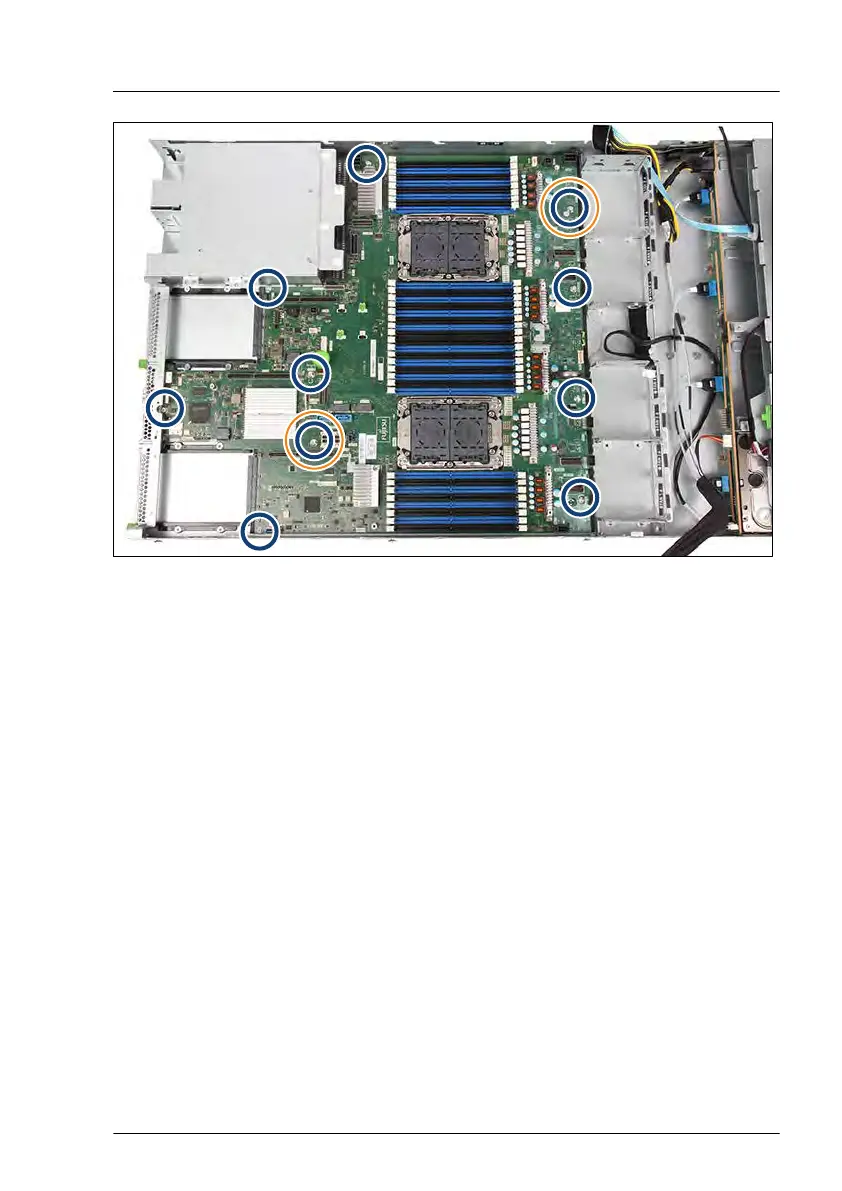

Figure 283: Position of the screws

▶

Remove the ten screws (see blue circles, orange circles show the centering

bolts) from the system board.

System board and components

RX2530 M6 Upgrade and Maintenance Manual 391
