Fujitsu PRIMERGY RX2530 M6

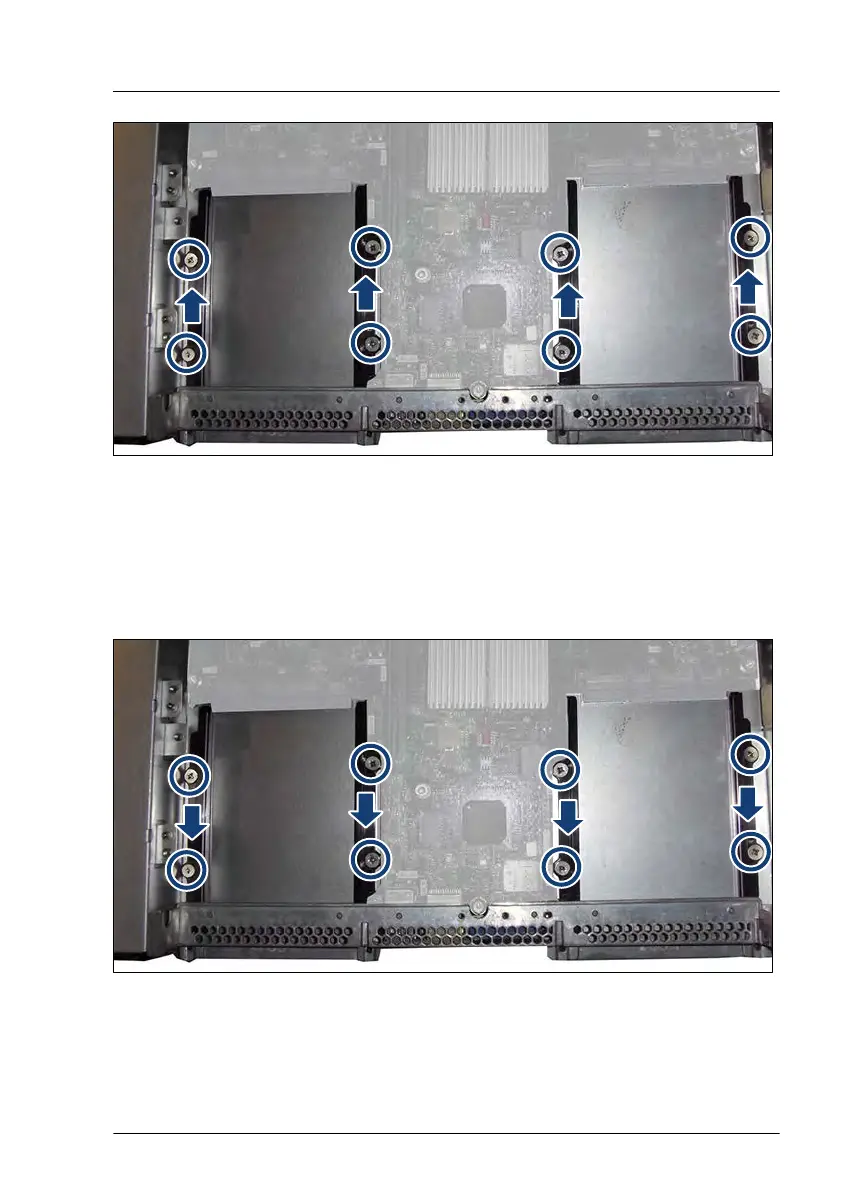

Figure 285: Removing the OCP rails
▶
Remove the eight screws (see circles).
▶
Remove the four OCP rails.
Installing the new system board
Figure 286: Installing the OCP rails
▶
Install the four OCP rails.
▶
Fasten the OCP rails with the eight screws (see circles).
System board and components
RX2530 M6 Upgrade and Maintenance Manual 393
