Check the settings on the new system board, see "Onboard settings" on
page 424.
▶
Hold the system board on the two touch points and insert it at a slight angle.
Slide the connectors into the I/O panel.
▶
Lower the system board carefully into the chassis.
▶
Adjust the system board. If necessary adjust the position of the system
board with a gentle twisting motion (orange circles in Figure 283 show the
centering bolts).
▶
Fasten the system board with the ten screws, see Figure 283.

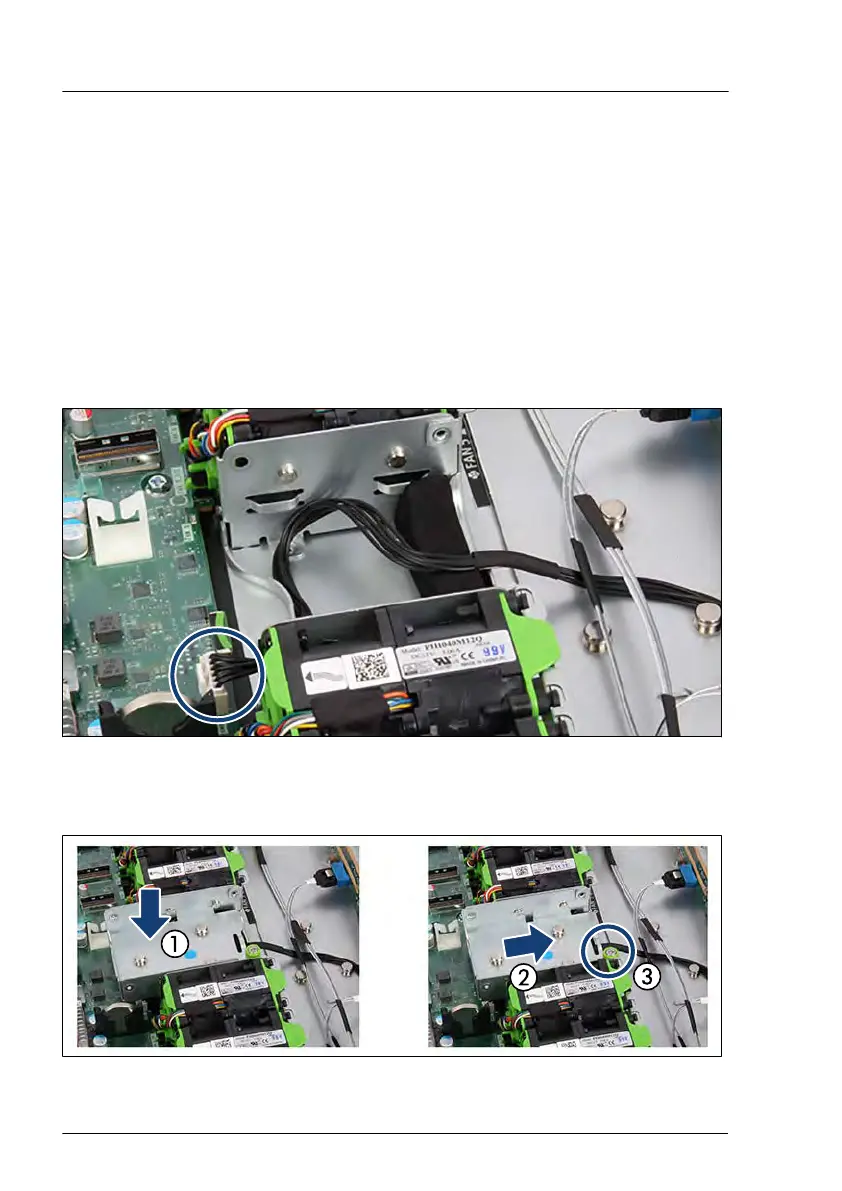

Figure 287: Connecting the OOB cable
▶
If applicable, connect the OOB cable to the system board (see circle).
Figure 288: Installing the FBU carrier
System board and components
394 Upgrade and Maintenance Manual RX2530 M6
