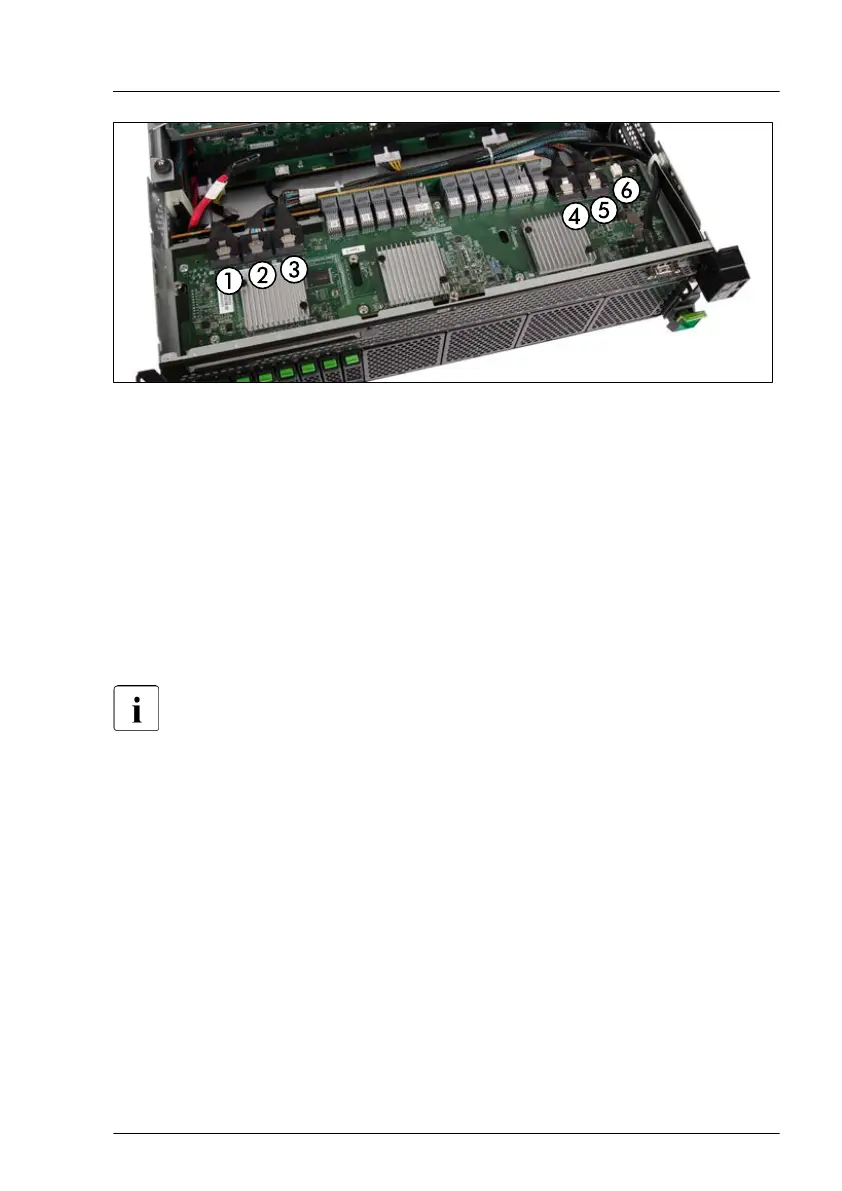

Figure 69: Connecting cables to the SAS expander switch board
▶
Connect the following cables to the SAS expander switch board:
1 Signal cable (raid card)
2 NVMe cable CN2 (top system board)
3 NVMe cable CN1 (top system board)
4 NVMe cable CN3 (top system board)
5 NVMe cable CN4 (top system board)
6 Sideband cable
For the cable plan, see "Appendix B" on page 419
.
▶
If applicable, install the front VGA, see "Replacing the front VGA" on
page 323
.
Hard disk drive (HDD) / solid state disk (SSD)
RX4770 M6 Upgrade and Maintenance Manual 157
