Installing the ODD cage

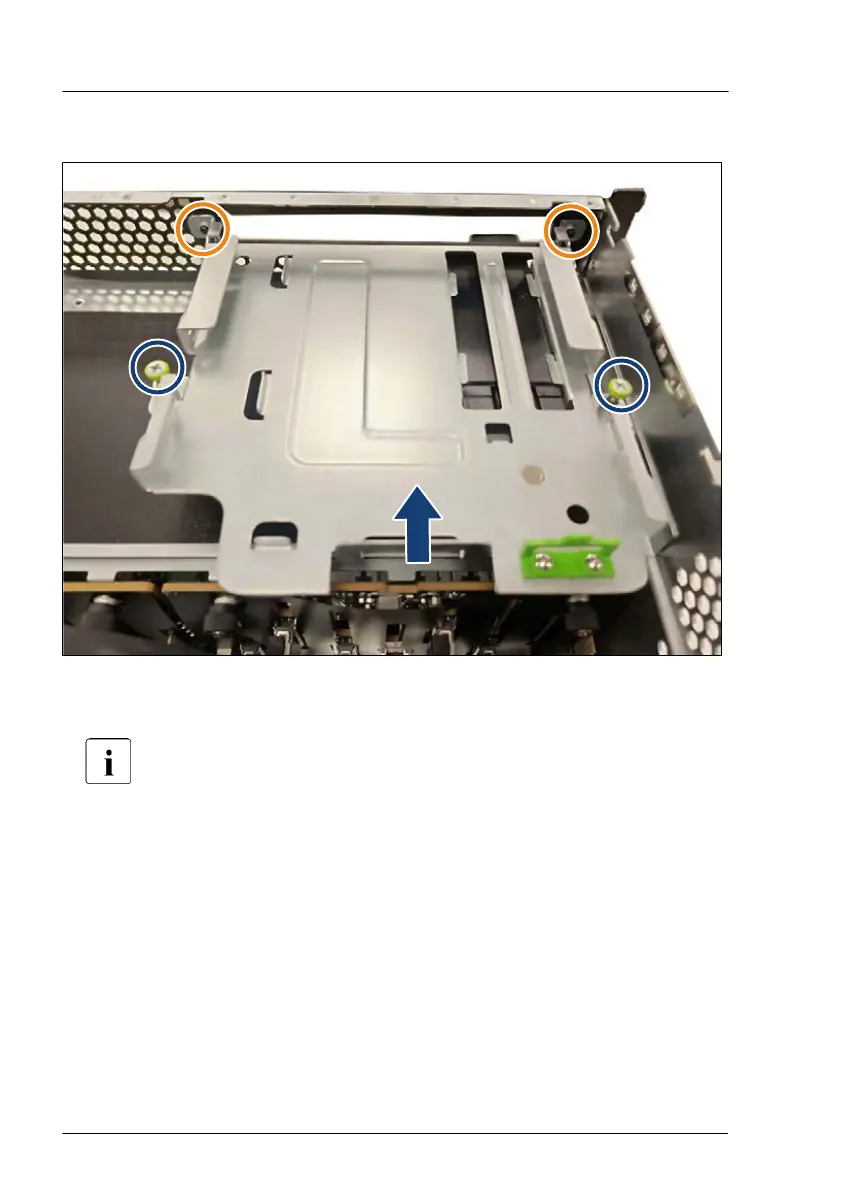

Figure 70: Installing the ODD cage
â–¶
Insert the ODD cage.
Notice the guiding points (see orange circles).
â–¶
Fasten the knurled screws (see blue circles).
â–¶
Install the ODD, see
"Installing the ODD" on page 303
.
â–¶
Install the ID card.
