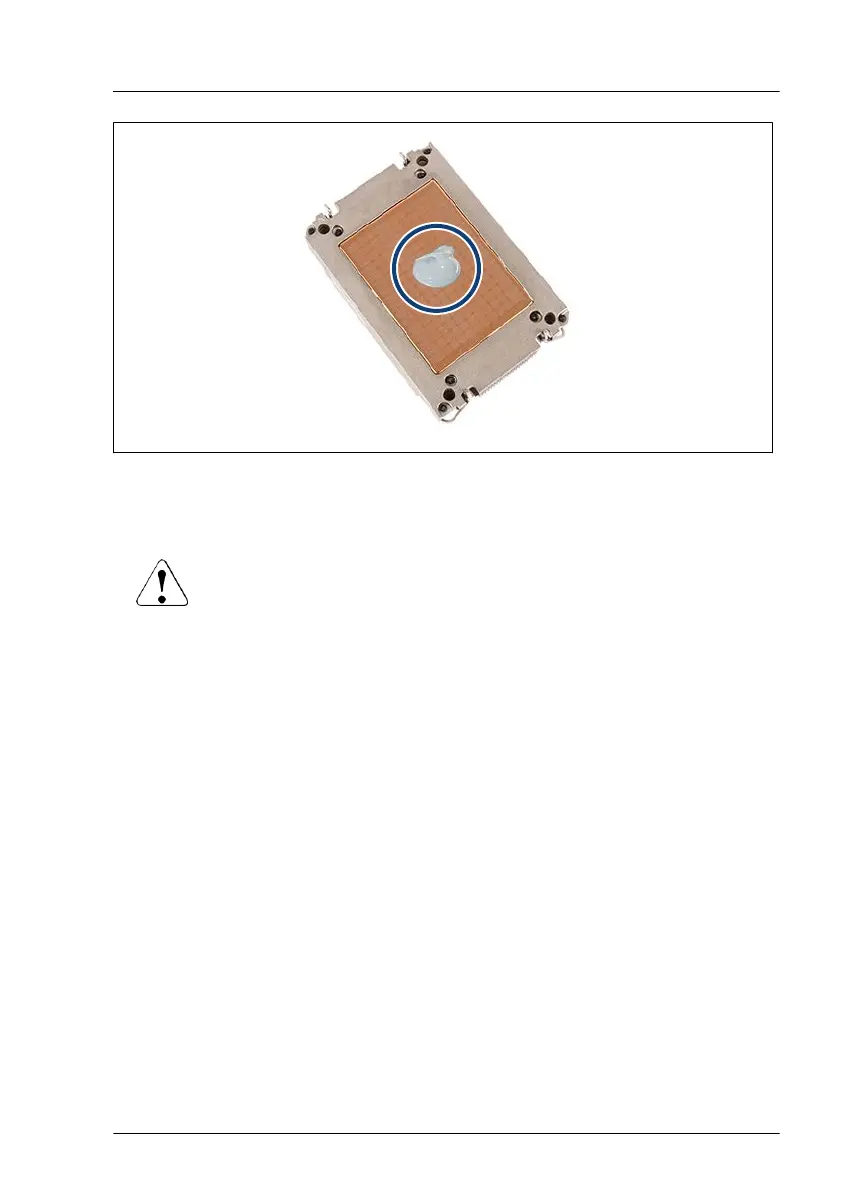

Figure 162: Applying the thermal paste
â–¶
Apply a small point-shaped amount of thermal paste (1.0 gram, see
description above) to the center of the heat sink lower surface as shown.
CAUTION
â–¶
Do not mix different types of thermal paste.
Installing the CPU and heat sink
â–¶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
â–¶
If applicable, remove the protective cap from the bottom side of the new
CPU.
â–¶
Install the CPU, see "Installing the CPU" on page
260
.
â–¶
Install the heat sink, see "Installing the heat sink" on page 262.
Concluding steps
For CPU 1 and 2 (bottom system board):
â–¶
"Installing the air duct 2 (bottom system board)" on page 72.
â–¶
"Installing the top system board carrier" on page 76.
Processor (CPU)
RX4770 M6 Upgrade and Maintenance Manual 275
