Removing the LC kit

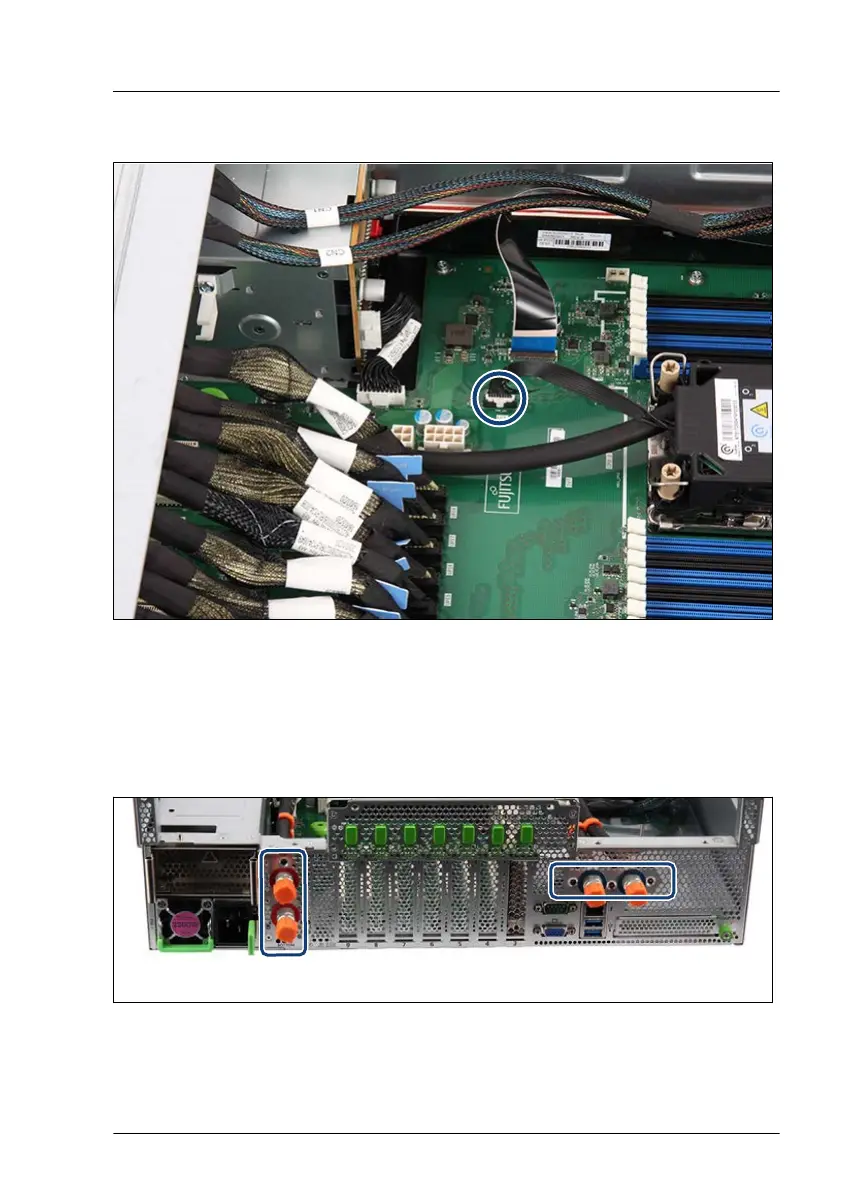

Figure 167: Disconnecting the power cables of the pumps - example bottom system board
connector "LC1"
â–¶
Disconnect the power cables from the bottom system board, see
Figure 163 Connectors of the LC on the bottom system board, and from the
top system board, see "Connectors of the LC on the top system board" on
page 279
.
Figure 168: Removing the screws from the chassis rear
Liquid cooling (LC)
RX4770 M6 Upgrade and Maintenance Manual 283
