Remove the orange protective caps from the tube connectors.
▶
Remove the six screws from the chassis rear (see rectangle).

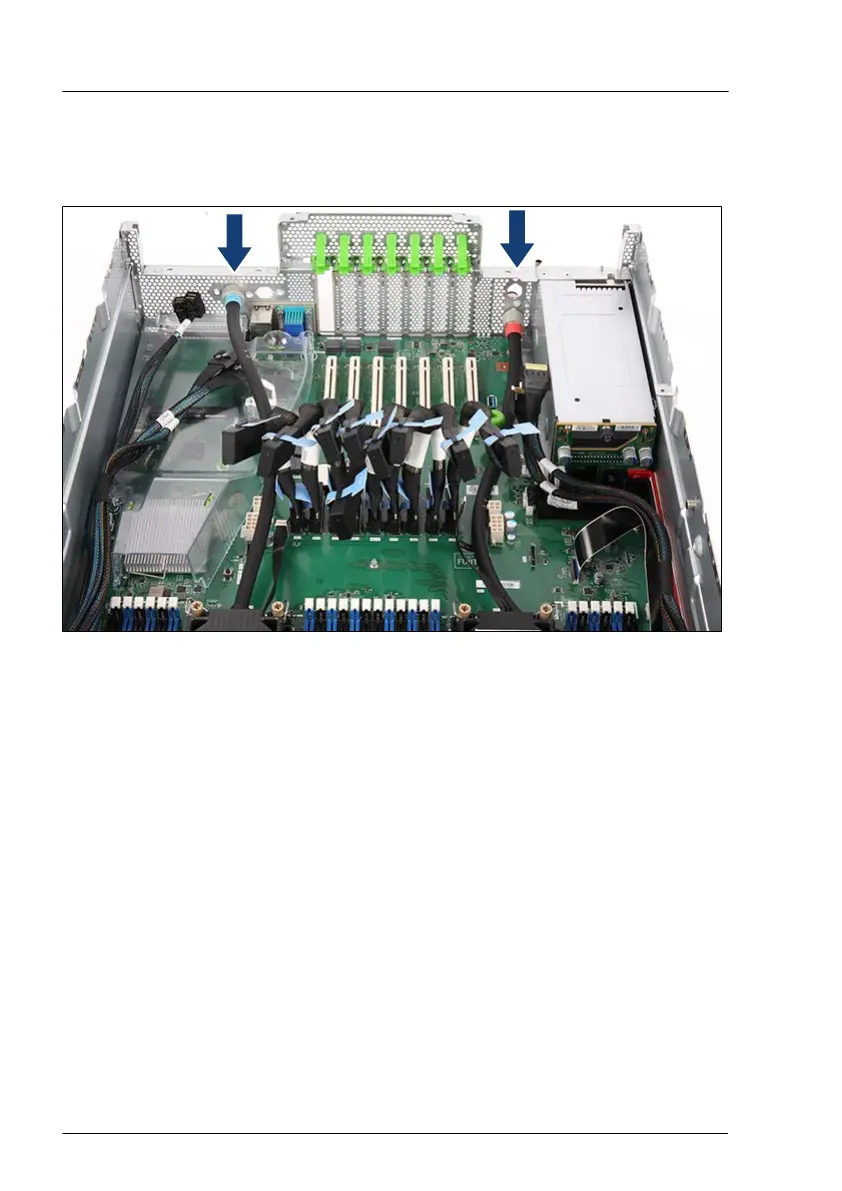

Figure 169: Removing the tube connectors from the chassis
▶
Pull the tube connectors out of the recesses of the chassis.
Liquid cooling (LC)
284 Upgrade and Maintenance Manual RX4770 M6
