Installing the CPU

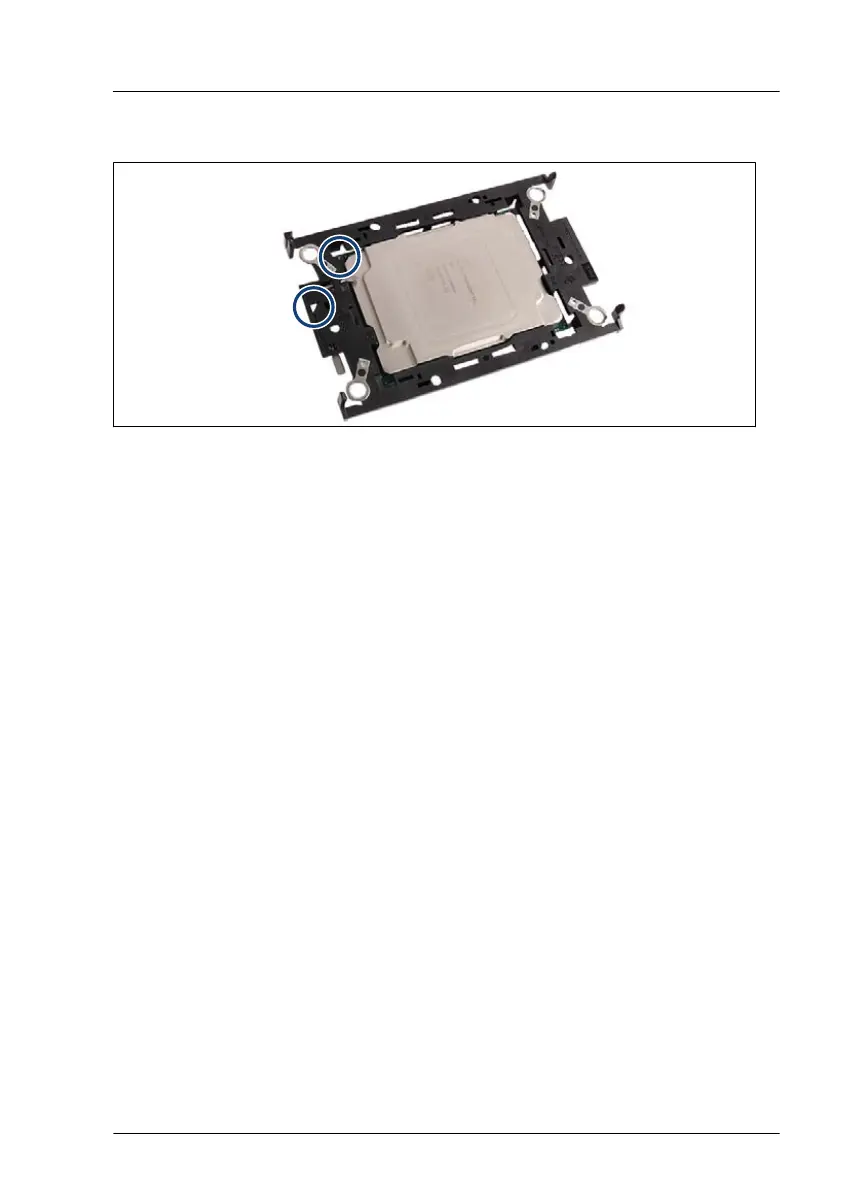

Figure 172: Installing the CPU in the CPU frame
â–¶
Click the CPU into the CPU frame. Ensure that the triangle marks on CPU
and on CPU frame are on the same edge (see circles).
â–¶
Ensure that the CPU fits in its place.
â–¶
When replacing the CPU, apply the thermal paste onto the LC heat sink, see
"Applying the thermal paste to the heat sink surface" on page 274.
Liquid cooling (LC)
RX4770 M6 Upgrade and Maintenance Manual 287
