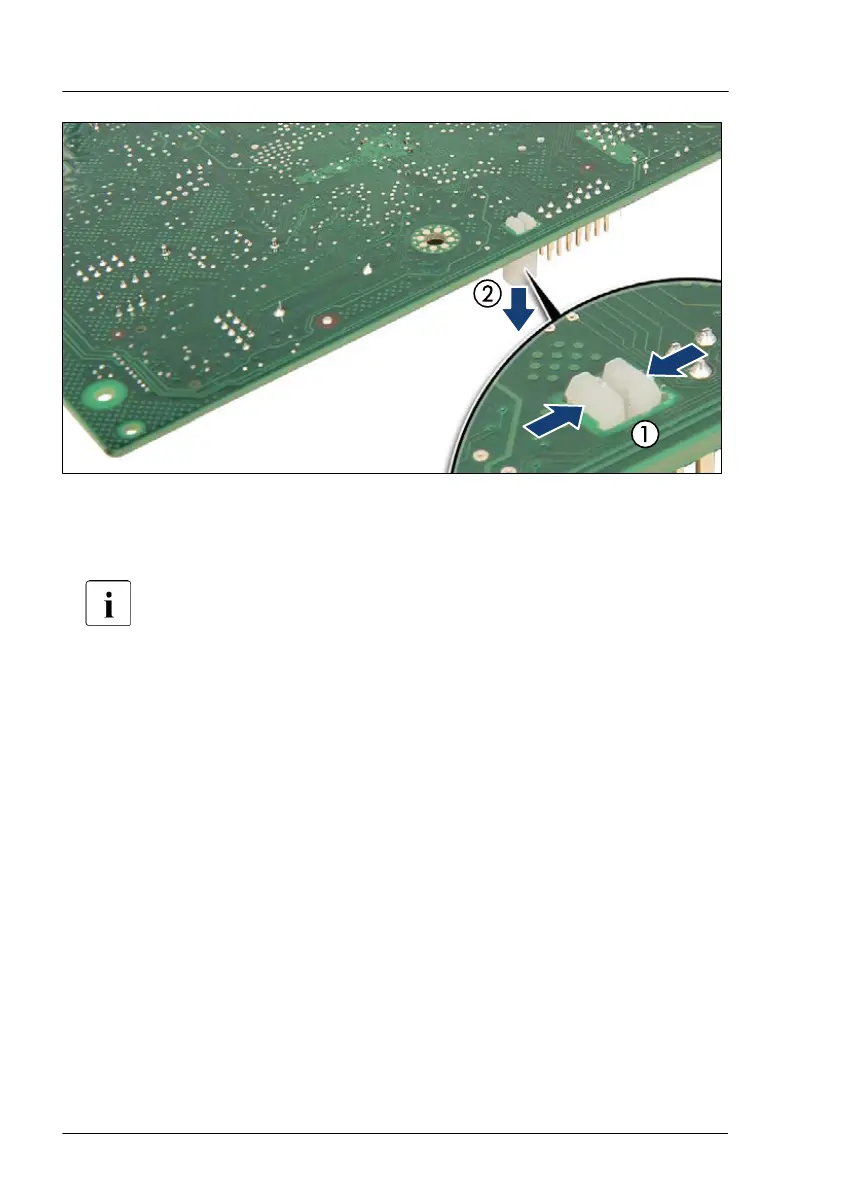

Figure 212: Removing the TPM spacer
▶
Using a flat nose pliers, press together the hooks on the TPM spacer (1, see
close-up) and remove it from the system board (2).
If the TPM is to be replaced, the TPM spacer may remain on the
system board.
Concluding steps
▶
Install the bottom system board, see "Installing the new bottom system
board" on page 383.
▶
If applicable, install the OCP module, see "Installing the OCP module" on
page 189
.
▶
Install the power distribution board, see "Installing the new power
distribution board" on page 132.
▶
Connect the front panel cable from the bottom system board, see "Installing
the COP" on page 320.
▶
If applicable, install the expansion cards from slot 3 to slot 9, see "Installing
the expansion card" on page 194.
▶
"Installing the OCP air duct" on page 73.
▶
"Installing the air duct 2 (bottom system board)" on page 72.
System board and components
340 Upgrade and Maintenance Manual RX4770 M6
