Grandstream Networks UCM6100 Series

To Next Page

To Previous Page

P a g e | 137

UCM6100 Series User Manual

Version 1.0.18.13

EXTENSIONS

Create New User

Create New SIP Extension

To manually create new SIP user, go to Web GUI→Extension/Trunk→Extensions. Click on "Add" and a new

dialog window will show for users to fill in the extension information.

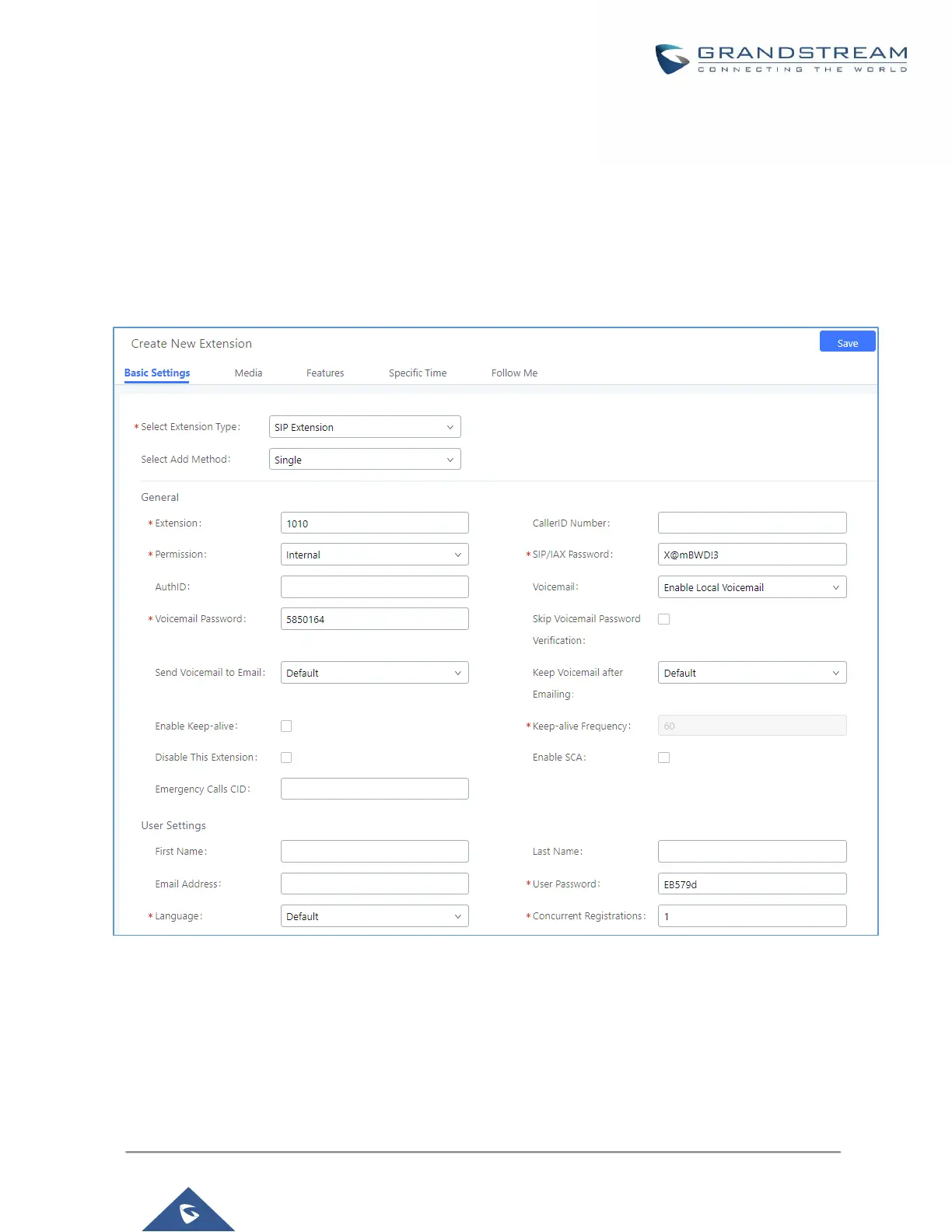

Figure 79: Create New Device

Extension options are divided into four categories:

• Basic Settings

• Media

• Features

• Specific Time
