P a g e | 251

UCM6100 Series User Manual

Version 1.0.18.13

PAGING AND INTERCOM GROUP

Paging and Intercom Group can be used to make an announcement over the speaker on a group of phones.

Targeted phones will answer immediately using speaker. The UCM6100 paging and intercom can be used via

feature code to a single extension or a paging/intercom group. This section describes the configuration of

paging/intercom group under Web GUI→Call Features→Paging/Intercom.

Configure Paging/Intercom Group

• Click on "Create New Paging/Intercom Group" to add paging/intercom group.

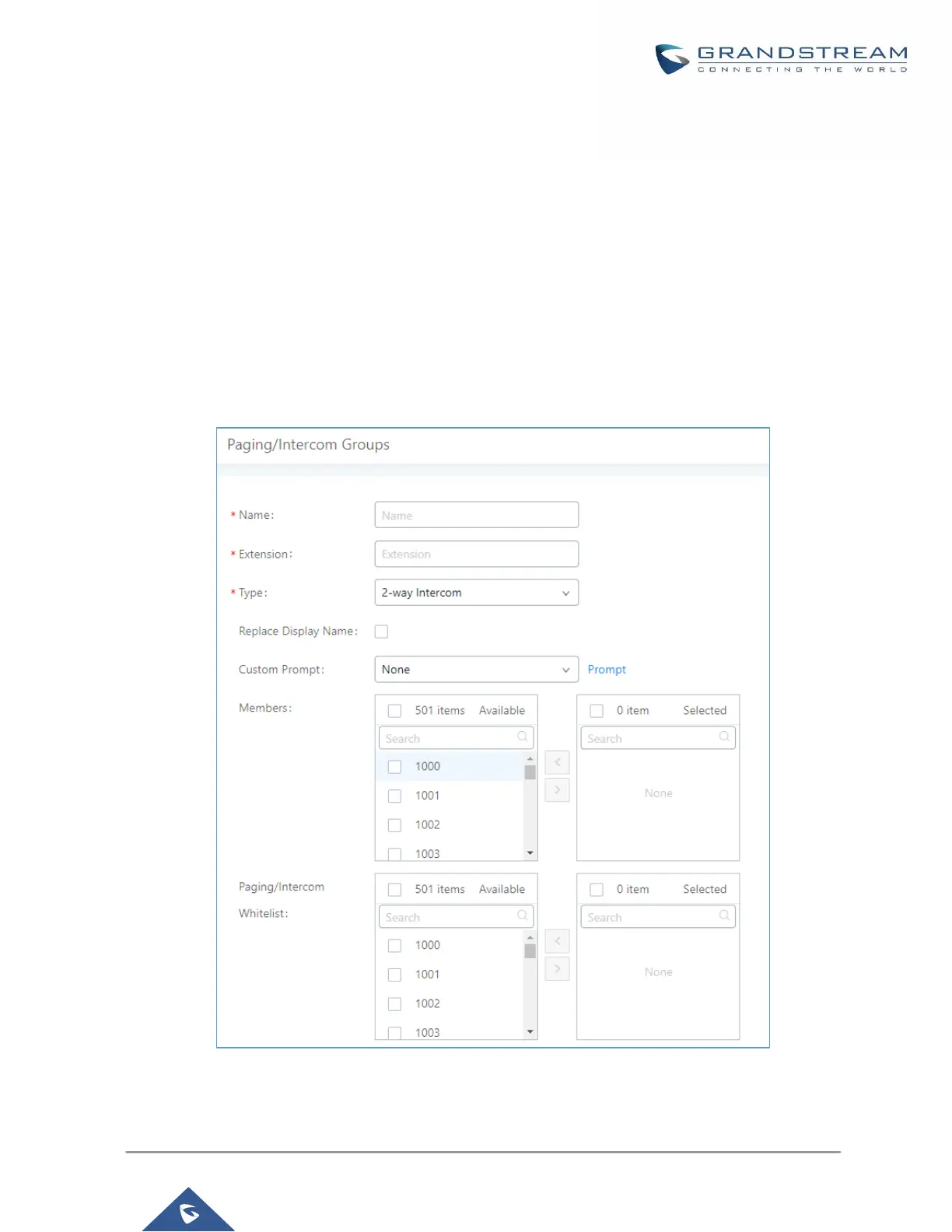

Figure 151: Paging/Intercom Group
