P a g e | 370

UCM6100 Series User Manual

Version 1.0.18.13

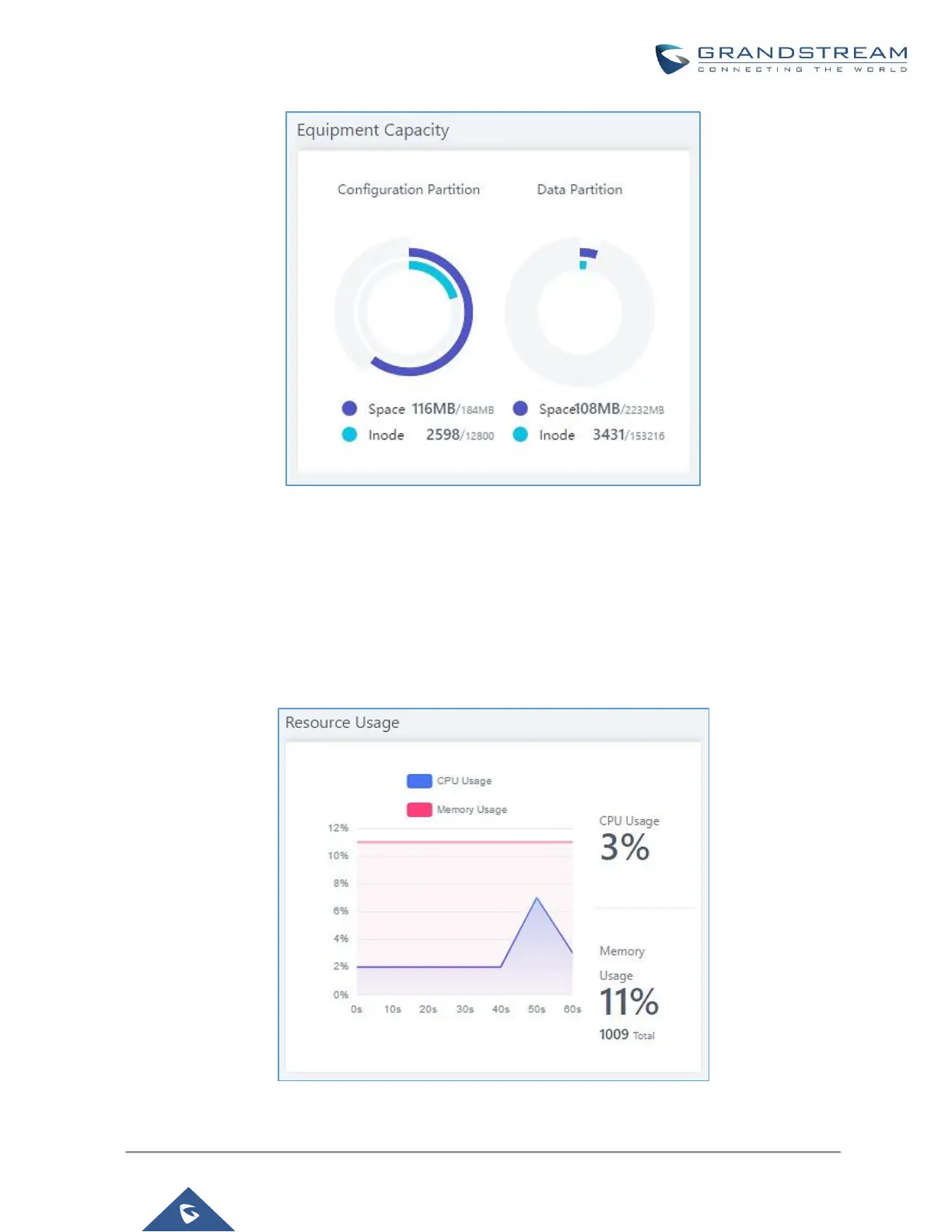

Figure 251: System Status→Storage Usage

Resource Usage

When configuring and managing the UCM6100, users could access resource usage information to estimate the

current usage and allocate the resources accordingly. Under Web GUI→System

Status→Dashboard→Resource Usage, the current CPU usage and Memory usage are shown in the pie chart.

Figure 252: System Status→Resource Usage
