• Method: Switch
For UCM6102, WAN port interface is used for uplink connection; LAN port interface is used as bridge for PC
connection. For UCM6104, LAN 1 port interface is used for connection; LAN 2 port interface is used as
bridge for PC connection.

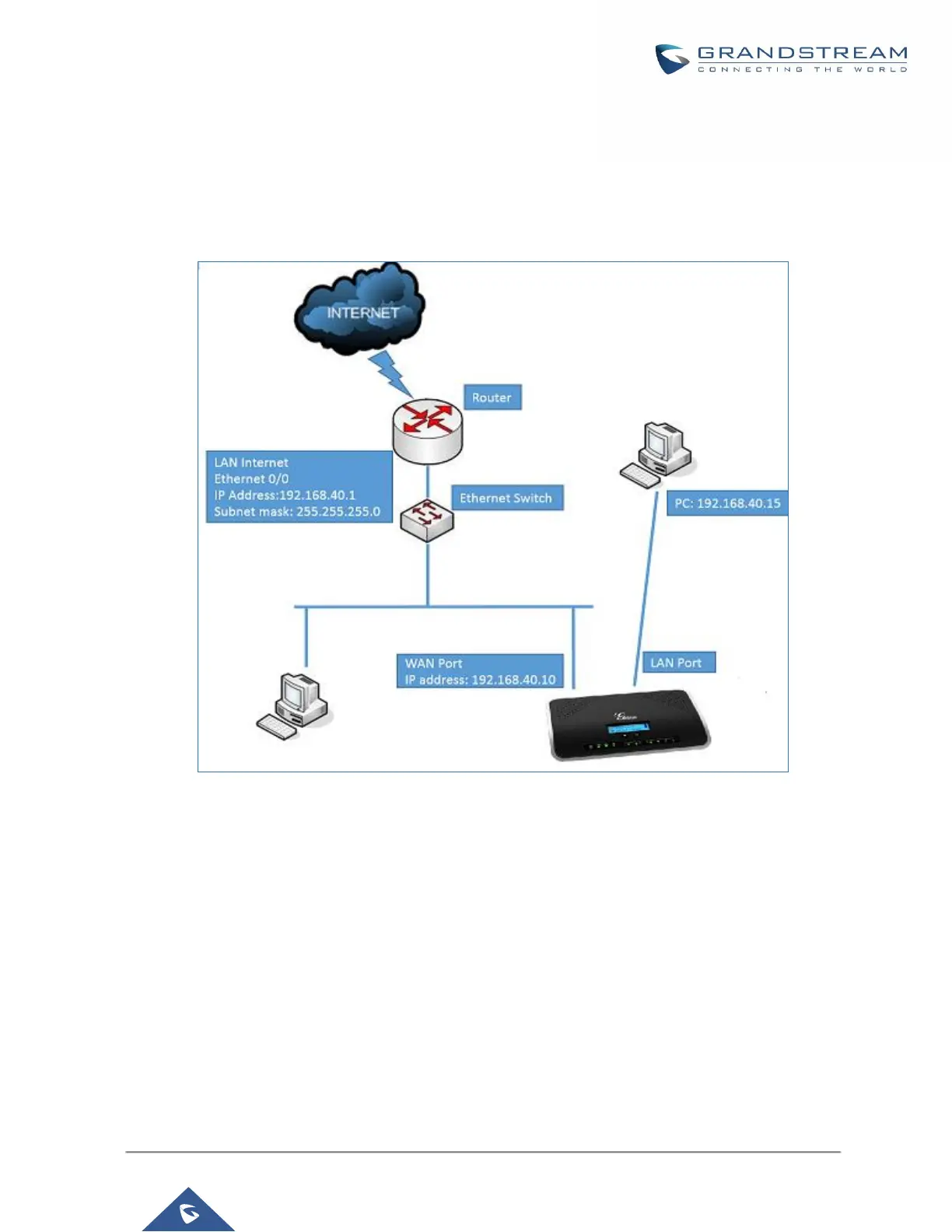

Figure 13: UCM6102 Network Interface Method: Switch
• Method: Dual
For UCM6102, both WAN port and LAN port are used for uplink connection. For UCM6104, WAN port will
be mapped to LAN 1 interface; LAN port will be mapped to LAN 2 interface. Users will need assign LAN 1
or LAN 2 as the default interface in option "Default Interface" and configure "Gateway IP" if static IP is used
for this interface.
