P a g e | 311

UCM6100 Series User Manual

Version 1.0.18.13

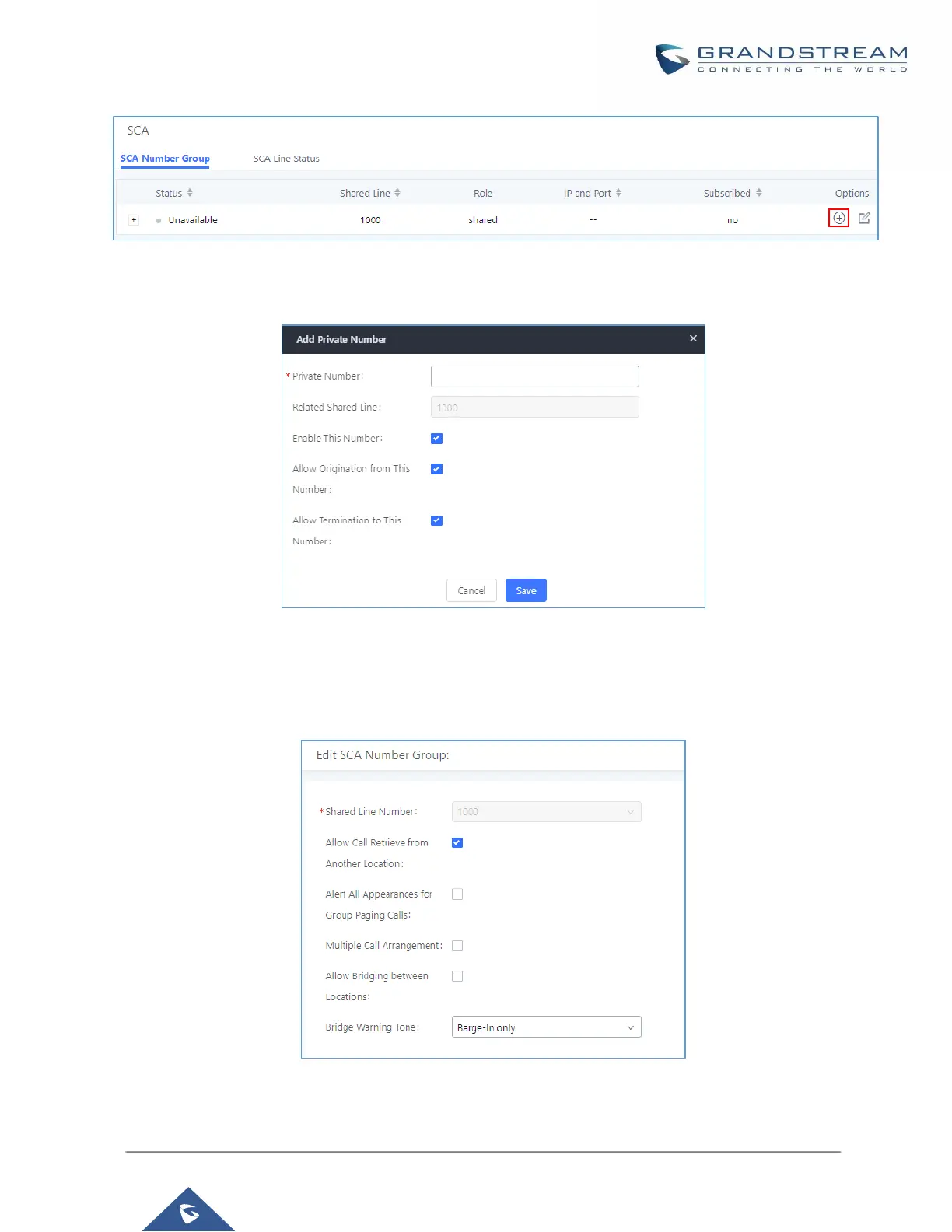

Figure 205: SCA Number Configuration

3. Configure the private number as desired.

Figure 206: SCA Private Number Configuration

4. Once the private number has been created, users must now register a device to it. To properly register a

device to the private number, use the configured private number as the SIP User ID. Auth ID and Password

will be the same as the main extension’s. Once registration is complete, SCA is now configured.

Figure 207: SCA Options

SCA has various options to change its behavior:
